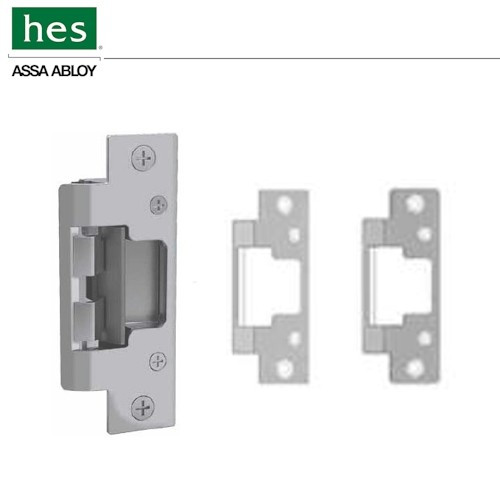

8300C-630-LBM Hes Fire Rated Electric Strike with LatchBolt Monitor grade 1 hardware in Satin Stainless finish
This is for the complete kit "C"
Includes 8300 electric strike body, 801 & 801A faceplates (4-7/8” x 1-1/4”) and mounting hardware
The 8300 series is a fire rated, compact, high performance electric strike it features a unique concealed design to be used with cylindrical locksets.
No cutting of your frame is necessary. Simply remove your existing strike plate, adjust the vertical alignment feature to the latchbolt centerline, drill your holes and install your new strike.
Its strength is derived from a unique keeper pin locking design, this helps enable the 8300 to exceed the ratings of the frame, door and locking hardware.
This awesome electric strike is easy to install and complies with NFPA 80-07 guidelines to retrofit into fire-rated frames. The 8300 accommodates latchbolts that have up to 5/8" throw.
- Fire rated
- Latch Bolt Monitor
- Outdoor rated
- Grade 1 strength
- Field selectable fail safe or fail secure
- Dual voltage 12 or 24v
- Installs in wood or metal frame
- Plug in connector
- Five year limited warranty
- Dynamic strength 70 ft-lbs.
- Static strength 1,500 lbs.
- Non handed
