Product Description

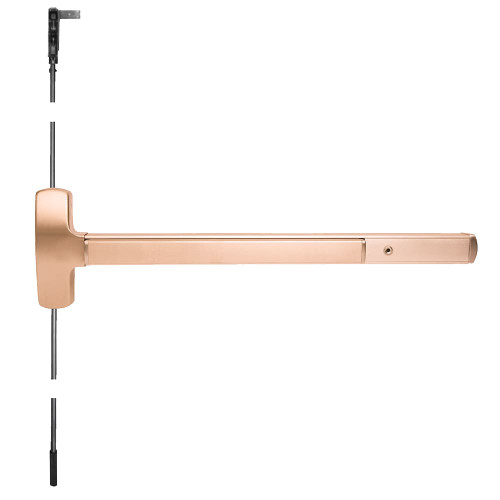

25CWDC-NL-US15-3 Falcon 25 Series Wood Door Concealed Vertical Rod Devices with 512-NL Night Latch Trim in Satin Nickel Finish

This device is for a 36" door

The Falcon 25CWDC-NL-US15-3 Concealed vertical rod device is used for metal and wood door applications. The Falcon 25CWCD wood door Series concealed vertical rod device offers extraordinary value, clean styling and the security advantages of two-point latching. Concealed vertical rods add strength to the door, while maintaining an alluring appearance. This series patented center slide mechanism allows you to easy rod adjustment in the field. The 25CWDC series are certified to ANSI A156.3-2001 grade 1 standards.

Features and Benefits:

• Satin Nickel finish
• Cylinders are not included
• Handing: Non handed
• 512-NL Night latch trim
• Dogging: Hex dogging standard
• Device lengths: 3 feet (36 inch)
• Doors: 1-3/4" thick, wood
• Non fire rated hardware
• Projections: 2-3/4" maximum, 2" dogged
• Strike: 4188 mortised top, 2130 bottom standard
• Deadlocking latchbolt standard in top latch
• Latch retention hold standard in top latch
• Fasteners: All mounting screws are concealed, sheet metal screws standard
• Clean design with no exposed screws or rivets on the back of the device
• Vertical rods: Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
