Product Description

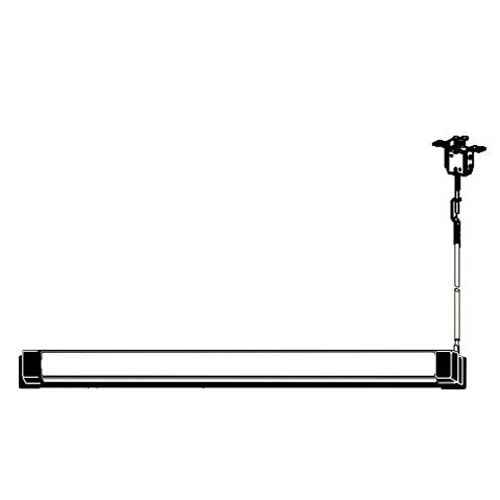

8511T-M2-48 Adams Rite Single Top Vertical Rod Exit Device for Steel Doors in Clear Anodized Finish

The 8511T-M2-48 series Exit Device has patented top latching mechanism that interlocks the door to frame with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install. It also has adjustable steel rods protected in contoured covers.

Benefits and Features:

• Clear Anodized Pushbar Finish
• Pushbar Length: 48 inches
• Life Safety
• Door Height: Standard unit adjustable for doors up to 66" above the selected bar height
• Door Thickness: Suits 1-3/4" standard up to 2-1/4"
• Stile Width: Minimum 3-1/2" stile
• Projection: 2-5/8" when fully projected, 1-5/8" when dogged
• Non-handed operation and lever entry trim is field reversible
• Patented top latching mechanism interlocks the door to frame
• Strong and durable construction for a high level of security
• Adjustable steel rods protected in contoured covers
• Easy to install with clean and unobtrusive design
• Top rod only
• Grade 1 strength
• Standard self-tapping screws fastener
• Standard dogging with hex key
• Dual switch monitoring feature
• 5 year limited manufacturer's warranty is included
