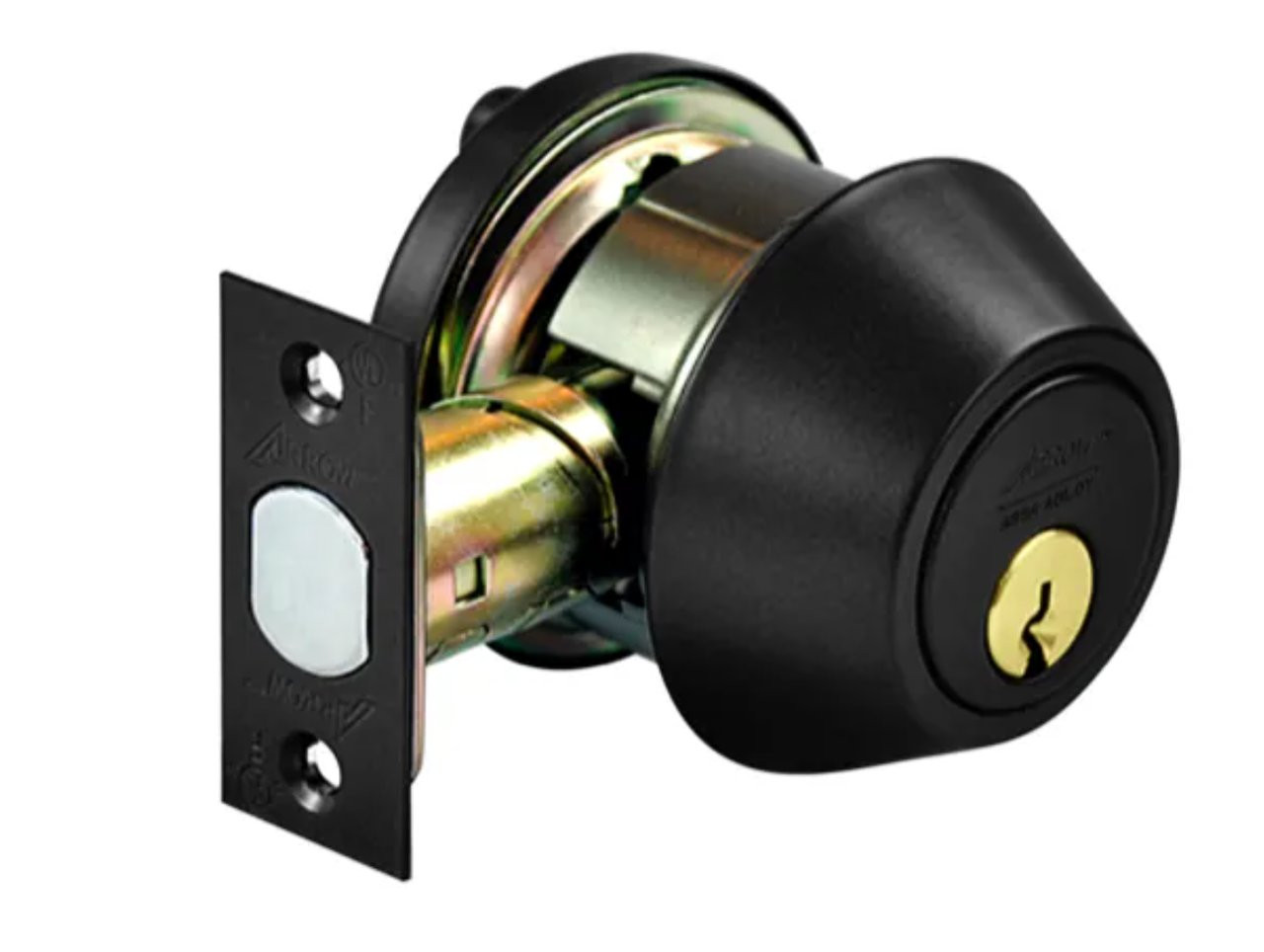

Arrow DBX61 Single Cylinder Deadbolt, Dark Oxidized Bronze, CS Keyway, IC Prep

Product Description

Arrow DBX61 Single Cylinder Deadbolt - CS Keyway

The Arrow DBX61 is a Grade 2 commercial deadbolt designed for commercial and residential applications requiring auxiliary locking. This single cylinder configuration in dark oxidized bronze finish features the CS keyway. This unit is prepared for SFIC interchangeable cores (core not included).

Function Operation

Cylinder x Thumbturn deadbolt. Key operates outside, thumbturn inside.

Applications

• Office doors
• Storerooms
• Residential entry
• Auxiliary locking applications

Technical Specifications

• Series: DBX Series Deadbolt
• Function: DBX61 - Single Cylinder
• Grade: ANSI/BHMA A156.36 Grade 2
• Finish: Dark Oxidized Bronze (613E)
• Cylinder: IC Prep (Less Core), CS keyway
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/8" to 2-3/4" adjustable
• Strike: 2-3/4" x 1-1/8", square corners
• Handing: Non-handed
• Certification: UL Listed
• Warranty: 1 year

Note: Product images are representative and may not reflect exact finish. Verify specifications before ordering.
