Arrow DBX62 Double Cylinder Deadbolt, Dark Oxidized Bronze, CS Keyway, IC Prep

Product Description

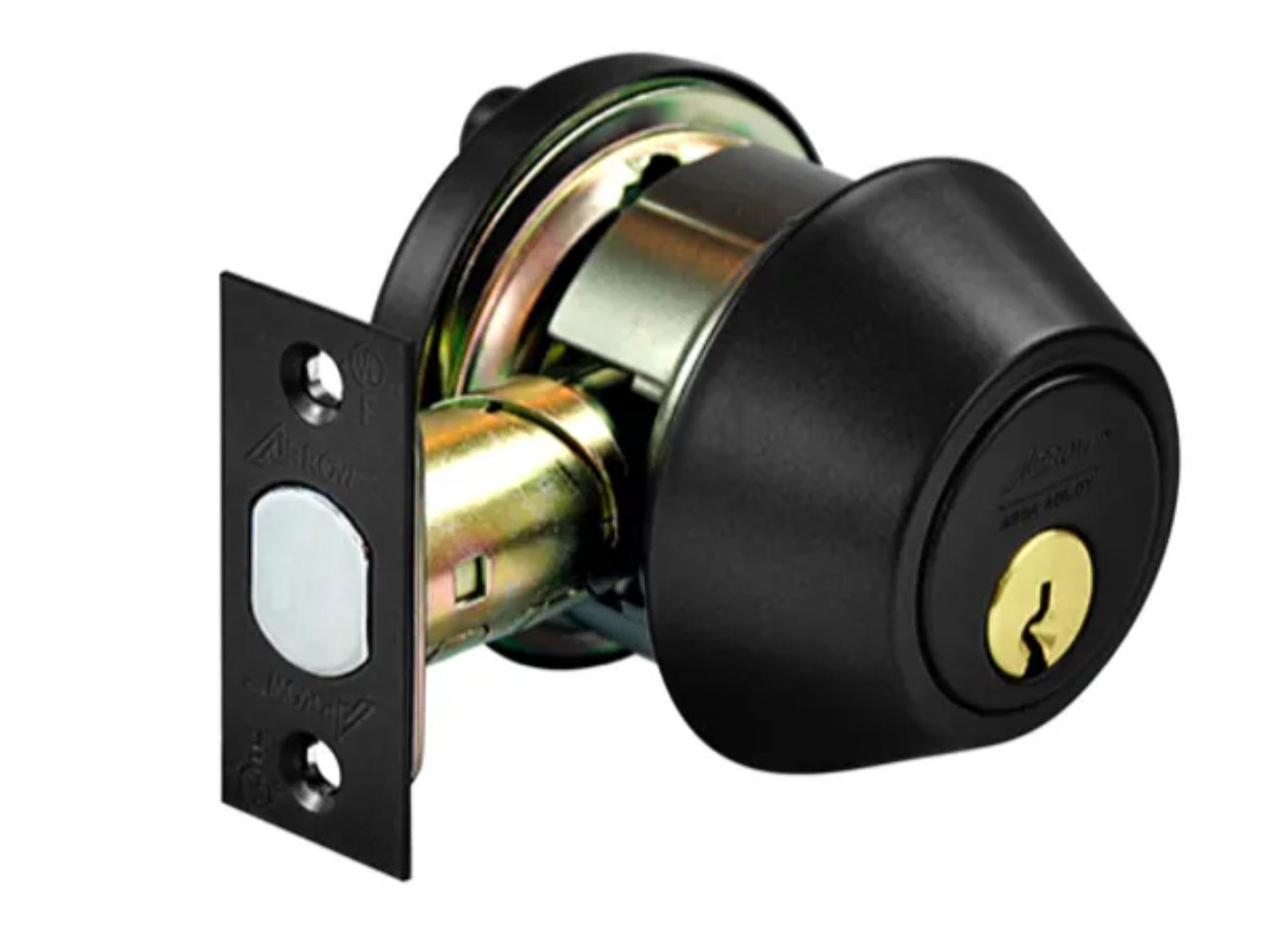

Arrow DBX62 Double Cylinder Deadbolt - CS Keyway

The Arrow DBX62 is a Grade 2 commercial deadbolt designed for commercial and residential applications requiring auxiliary locking. This double cylinder configuration in dark oxidized bronze finish features the CS keyway. This unit is prepared for SFIC interchangeable cores (core not included).

Function Operation

Cylinder x Cylinder deadbolt. Key required from both sides.

Applications

• Office doors
• Storerooms
• Residential entry
• Auxiliary locking applications

Technical Specifications

• Series: DBX Series Deadbolt
• Function: DBX62 - Double Cylinder
• Grade: ANSI/BHMA A156.36 Grade 2
• Finish: Dark Oxidized Bronze (613E)
• Cylinder: IC Prep (Less Core), CS keyway
• Door Thickness: 1-3/8" to 1-3/4"
• Backset: 2-3/8" to 2-3/4" adjustable
• Strike: 2-3/4" x 1-1/8", square corners
• Handing: Non-handed
• Certification: UL Listed
• Warranty: 1 year

Note: Product images are representative and may not reflect exact finish. Verify specifications before ordering.
