Product Description

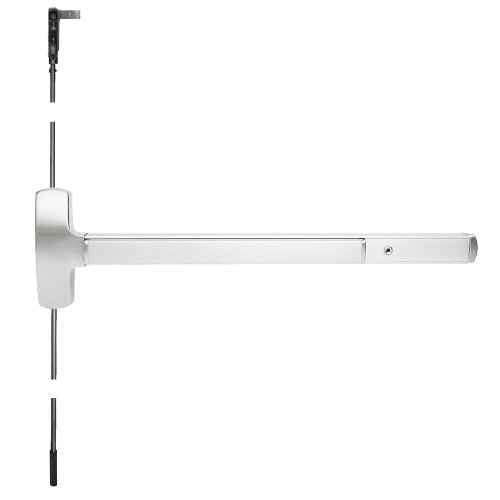

F-25CWDC-L-DANE-US32-4-LHR Falcon 25 Series Fire Rated Wood Door Concealed Vertical Rod Devices with 510L Dane Lever in Polished Stainless Steel Finish

This device is for a 48" door

The Falcon F-25CWDC-L-DANE-US32-4-LHR Concealed vertical rod device is used for wood and metal door applications. The Falcon F-25CWDC fire rated series concealed vertical rod device offers extraordinary value, clean styling and the security advantages of two-point latching. The Falcon F-25CWDC Series device lets you combine the safety of a fire-rated device. This series patented center slide mechanism allows you to easy rod adjustment in the field. The 25CWDC fire rated series are certified to ANSI A156.3-2001 grade 1 standards.

Features and Benefits:

• Polished Stainless Steel finish
• Cylinders are not included
• Handing: Left handed reversible
• 510L dane lever trim
• Latchbolt: Stainless steel, 3/4" throw
• Device lengths: 4 feet (48 inch)
• Doors: 1-3/4" thick, wood
• Fire rated hardware
• Projections: 2-3/4" maximum
• Strike: 4188 mortised top, 2130 bottom standard
• Deadlocking latchbolt standard
• Fasteners: All mounting screws are concealed. All machine screws (AMS) standard.
• Clean design with no exposed screws or rivets on the back of the device
• Vertical rods: Rods Accommodate Doors up to 7'0" – Cut to Specification in Field (top extension rod available)
• Streamlined design includes flush-end cap for clean lines and a more attractive installation
