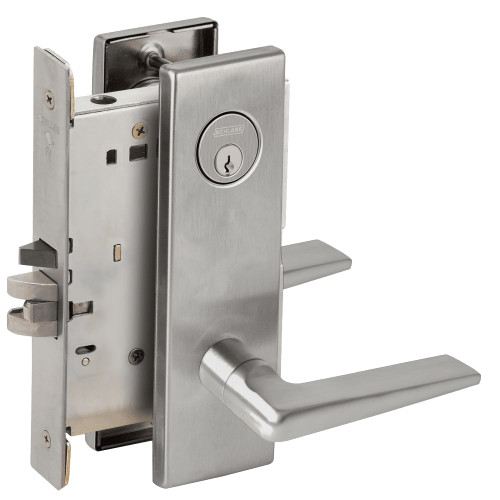

L9076P-05N-630-RX, Schlage Classroom Holdback, Mortise Lock, 05 Lever, N Escutcheon, Request to Exit, Satin Stainless Steel Finish

Product Description

L9076P-05N-630 Schlage L Series Classroom Holdback - Request to Exit Mortise Lock with 05 Cast Lever Design in Satin Stainless Steel Finish

The Schlage L9076P-05N-630 Commercial - Request to Exit mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9076P series meets ANSI/BHMA A156.13 series 1000 Grade 1.

Features and Benefits:

• Satin Stainless Steel finish
• 05 Cast lever style
• Escutcheon: N - Escutcheon (200mm x 64mm x 11mm)
• Single keyed function without deadbolt
• Handing: Field-reversible
• Door range: 1-3/4"
• Backset: 2-3/4"
• Keys: Two nickel silver cut keys per lock
• Cylinder: 6-pin full-face mortise cylinder with Schlage logo
• Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
• Case size: 4-7/16" x 6-1/16" x 1"
• Armor front: 1-1/4" x 8"
• Floating mounting tabs automatically adjust to fit a beveled door edge.
