Product Description

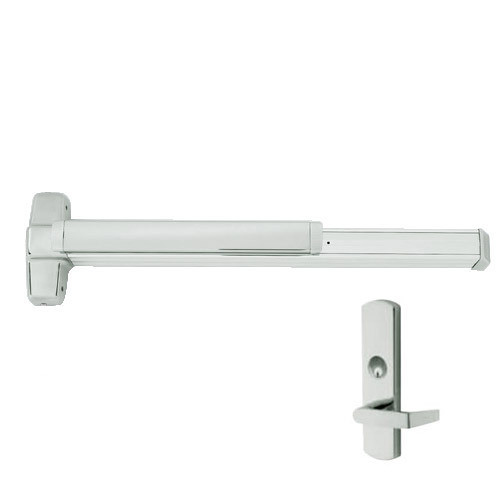

9949L-F-US26D-3-RHR Von Duprin 9949 Series with 996L Lever Right Handed Fire Rated Concealed Vertical Cable Exit Device in Satin Chrome Finish
This device is for a 36" door
The Von Duprin 9949L-F-US26D-3-RHR series of exit device for all types of single and double metal doors is well constructed from heavy gauge rolled steel section with the proven heavy duty touch bar mechanism that has been used so successfully in all architectural grade Von Duprin touch bar devices. The 9949 concealed vertical cable exit device is the economical alternative, incorporating a modern touchbar styling and the hardware is UL listed for fire rated exit hardware. It is specifically designed for use in areas where frequent abusive treatment can be expected. Touch bar exit devices are mounted on the egress side of the door. These devices feature an enclosed mechanism case with a push bar area to allow egress.
The 9949 series has a "grooved mechanism case"
Features and Benefits:
- Satin Chrome finish
- ANSI Function: 08
- Handing: Right handed
- Lever trim function - key locks and unlocks
- No mechanical dogging feature
- Cylinders and sex bolts are not included
- Includes 996L standard trim ANSI A156.3 (2008) Grade-1 certified
- Device lengths: 3 feet (914 mm) i.e 3' device for 2'4' to 3' (711mm to 914 mm) door size
- Fasteners: Includes screw pack for 1-3/4" (44mm) and 2-1/4" (57mm) thick metal doors
- Mechanism case dimensions: 2-1/4" x 2-1/4" (57mm x 57mm)
- All 9949 series exit devices are UL listed for fire rated exit hardware
- Strike: Top - 249 and bottom - 349 - unfinished strikes included as always
- Latch bolt: Deadlocking anti-friction top and bottom bolt, 5/8" (16mm) throw
- Device centerline from finished floor: 39-5/8" (1006 mm)
- Vertical cable: 7/32" (6mm) diameter stainless steel cables
