L9440-12N-606-RH Schlage L Series Privacy with Deadbolt Commercial Mortise Lock with 12 Cast Lever Design in Satin Brass Finish
The Schlage L9440-12N-606-RH commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9440 series meets ANSI/BHMA A156.13 series 1000 Grade 1.

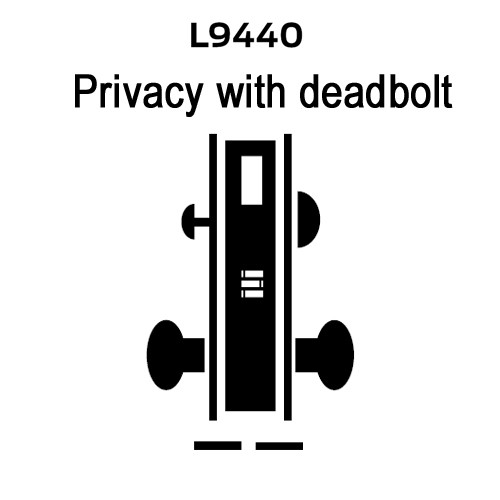

Privacy with deadbolt - Latchbolt retracted by lever from either side. Deadbolt thrown or retracted by inside thumbturn. Throwing deadbolt locks outside lever. Rotating inside lever simultaneously retracts deadbolt and latchbolt, and unlocks outside lever. To unlock from outside remove emergency button, insert emergency thumbturn in access hole and rotate. Inside liner is always free for immediate egress.
Features and Benefits:
- Satin Brass finish
- 12 Cast lever style
- Escutcheon: N - Escutcheon (200mm x 64mm x 11mm)
- Non keyed function
- Handing: Right handed
- Door range: 1-3/4"
- Backset: 2-3/4"
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Deadbolt: Lock with deadbolt
- Latchbolt: 3/4" Throw stainless steel with anti-friction tongue
- Floating mounting tabs automatically adjust to fit a beveled door edge.
