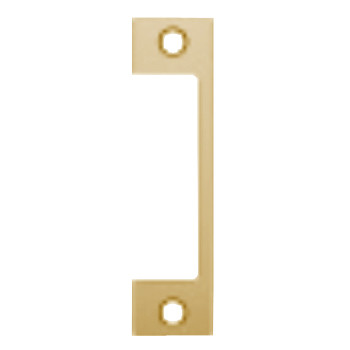

HT-612 Hes faceplate for 1006 Series in Satin Bronze Finish

Product Description

HT-612 Hes Faceplate for 1006 Series in Satin Bronze Finish

The 1006 series faceplate is perfectly designed for use with ASSA model 504 Mortise lockset with two latchbolts and a center deadlatch. Deadlatch or mortise locksets with a 1" deadbolt and a center-lined deadlatch. Also the Strike will not release when deadbolt is extended. Its operation is such that the electric strike will not release if the deadbolt is extended. The deadbolt is retracted during traffic hours and the latchbolt is retracted by the keeper, whereas the keeper returns to the locked position. The HT Series faceplate is to customize the functionality of the 1006 series electric strike.

Benefits and Features:

• Satin Bronze Finish
• Stainless Steel material
• It is recommended for use with ASSA model 504 Mortise lockset with two latchbolts and a center deadlatch. Deadlatch or mortise locksets with a 1" deadbolt and a center-lined deadlatch
• ANSI/BHMA Numbers: #E09391, #E09392, #E09393, #E09331, #E09332, #E09333
• Dimensions: 4-7/8" x 1-1/4"
• Compatible with ASSA type locksets
• Faceplate for 1006 Series
• The HT Series faceplate is to customize the functionality of the 1006 series electric strike
