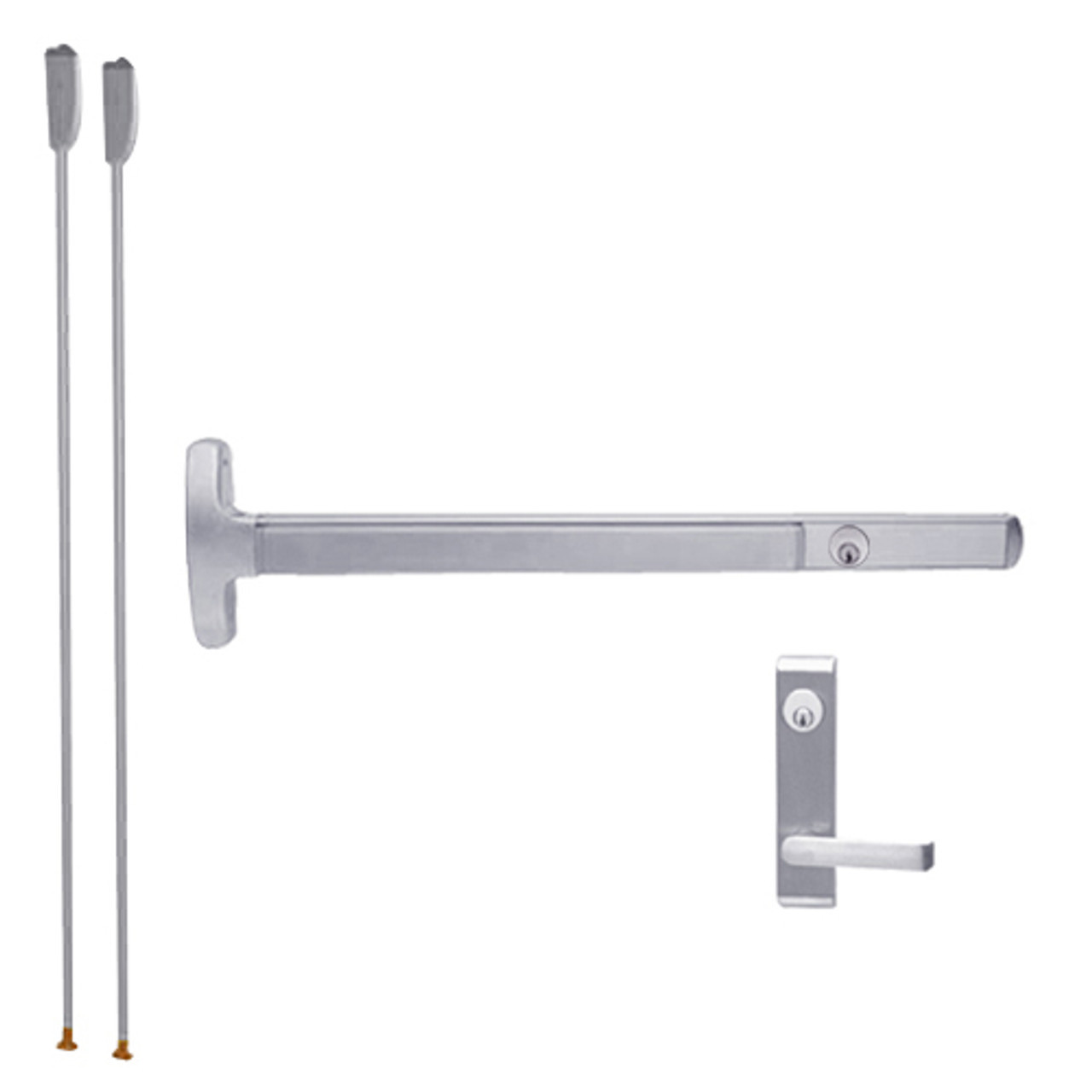

LD24-V-L-Dane-US26D-3-RHR Falcon 24 Series Surface Vertical Rod Device with 712L Dane Lever Trim in Satin Chrome

Product Description

LD24-V-L-Dane-US26D-3-RHR Falcon 24 Series Surface Vertical Rod Device with 712L Dane Lever Trim in Satin Chrome Finish

This device is for a 36" door

The Falcon LD24-V-L-Dane-US26D-3-RHR surface vertical device is used for wood and metal door applications. High-traffic applications demand the added strength and protection that comes with a vertical rod device. The Falcon 24-V Series delivers with a surface-applied design that includes standard top latch and deadlocking. The narrow stile and sleek touch bar design ensure an attractive installation. This 24-V Series are certified to ANSI A156.3-2001 Grade 1 standard.

Features and Benefits:

• Satin Chrome finish
• Handing: Right hand reversible
• 712L Dane lever trim
• Latchbolt: Stainless steel, 3/4" throw
• Less Dogging
• Device lengths: 3 feet (36 inch)
• Non fire rated hardware
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum
• Deadlocking latchbolt: Standard with top latch
• Fasteners: All mounting screws are concealed, sheet metal screws standard
• Strike: 3788 top strike is surface applied, 2130 bottom strike is mortised into floor. (Included)
• Vertical rods: Furnished to length based on a 40" horizontal CL from finished floor and a 7'0" door standard.
