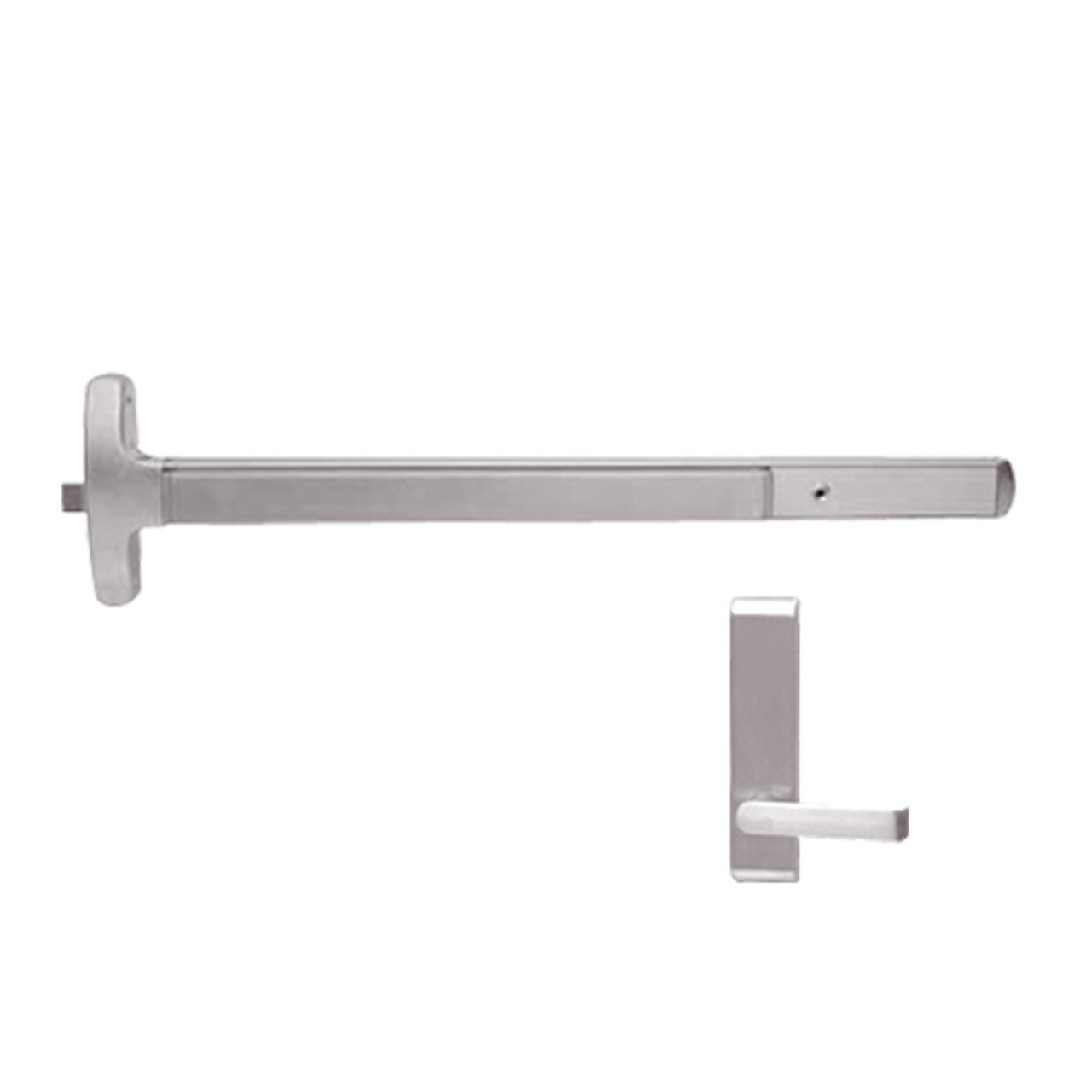

RX24-R-L-BE-DANE-US28-4-RHR Falcon 25 Series Request to Exit Rim Exit Device 712L-BE Dane Lever Trim with Blank Escutcheon in Anodized Aluminum

Product Description

RX24-R-L-BE-DANE-US28-4-RHR Falcon 25 Series Request to Exit Rim Exit Device 712L-BE Dane Lever Trim with Blank Escutcheon in Anodized Aluminum Finish

This device is for a 48" door

The Falcon RX24-R-L-BE-DANE-US28-4-RHR series of exit device for all types of single and double door application. The Falcon 25 Series Request to Exit exit devices provide you a full range of functions and are for narrow stile door types. The Falcon 24-R Series narrow stile rim device meets the demanding requirements of high traffic installations with a single-point, rim type latch and a streamlined touch bar design. This 24-R Series are certified to ANSI A156.3-2001 grade 1 standards.

Features and Benefits:

• Anodized Aluminum finish
• Cylinders are not included
• Switch Type: Request to Exit
• Handing: Right hand reversible
• 712L-BE Dane lever trim with blank escutcheon
• Latchbolt: Stainless steel, 3/4" throw
• Dogging: Half turn hex dogging standard
• Device lengths: 4 feet (48 inch)
• Doors: 1-3/4" thick, wood or metal door
• Projections: 2-3/4" maximum, 2" dogged
• Strike: 299 strike standard
• Non fire rated hardware
• Mounting height: 40" from CL to finished floor
• Fasteners: All mounting screws are concealed
• Center case and working parts: Wrought steel with heavy wrought and sintered metal parts
