    Von Duprin PS900 Series: The Industry Standard for Panic Power

    Von Duprin power supplies are engineered specifically to handle the high-inrush current required by electrified panic hardware like the 99-series EL and QEL devices. At Lock Depot, we don't just sell boxes; we provide the genuine Allegion option boards and base units needed to ensure your life-safety system meets code and stays operational 24/7.

    Pro Tip: Upgrading to a "FA" (Fire Alarm) version board like the 900-8P-FA allows for instant integration with your building's fire panel without the need for additional external relays. Shop all Fire Alarm boards →

    Shop by Board Type

    Quick-filter to exactly what you need:

    8-Output Boards 4-Output Boards 2-Output EL Boards Fire Alarm Boards
    Base Power Supplies PTC Auto-Reset High Inrush (EL/QEL) Battery Backup

    Expansion Board Comparison Guide

    Expansion Board Outputs Protection Fire Relay? Best Use Case
    8-Output Distribution Boards
    900-8P-FA 8 PTC (Auto-Reset) Yes Multi-door fire alarm systems — no fuse replacement
    900-8F-FA 8 Glass Fuses Yes Critical circuit isolation with fire alarm
    900-8P 8 PTC (Auto-Reset) Add 900-FA Multi-door systems — no fire alarm required
    900-8F 8 Glass Fuses Add 900-FA Individual fuse protection — no fire alarm
    4-Output Relay & Logic Boards
    900-4RL-FA 4 Relay + Logic Yes Mantraps, sally ports, interlocking with fire alarm
    900-4RL 4 Relay + Logic Add 900-FA Mantraps, sally ports, interlocking
    900-4R-FA 4 Relay Out Yes High-draw electric strikes with fire alarm
    900-4R 4 Relay Out Add 900-FA High-draw electric strikes and locks
    2-Output EL/QEL Device Control
    900-2RS-FA 2 EL Device Control Yes EL/QEL latch retraction with fire alarm
    900-2RS 2 EL Device Control Add 900-FA EL/QEL latch retraction
    Accessories & Add-Ons
    900-FA N/A Relay Yes Add fire alarm to any existing non-FA board

    Understanding PTC vs. Fused Protection

    One of the most common questions we get is whether to use the PTC (auto-reset) boards or the Fused boards.

    PTC (900-8P-FA): These are "solid-state" breakers. If there is a short at the door, the PTC trips and then auto-resets once the fault is fixed. This is the gold standard for reducing service calls — no more driving back to a job site just to replace a blown glass fuse after a power surge. Shop all PTC boards →

    Fused (900-8F-FA): These use traditional glass fuses. While they require manual replacement, they are preferred by some engineers for absolute circuit isolation in high-security environments where you want to know exactly which circuit faulted. Shop all Fused boards →

    Which Base Power Supply Do I Need?

    Model Output Inrush Best For
    Standard Base Units
    PS902 2A @ 12/24 VDC Standard Small systems — 1-2 doors with high draw or up to 8 low-draw maglocks
    PS904 4A @ 12/24 VDC Standard Mid-range multi-door installations with multiple expansion boards
    PS906 6A @ 12/24 VDC Standard Maximum capacity for large installations with high total draw
    High-Inrush (EL/QEL Applications)
    PS914 4A @ 12/24 VDC 16A Inrush Electric Latch Retraction (EL) — standard supplies can't handle the kick
    Retrofit & Upgrade
    PS914RFK 4A @ 12/24 VDC 16A Inrush Retrofit PS914 into existing PS873 cabinet without replacing enclosure

    Battery Backup & Accessories

    Need battery backup for your system? Here's the breakdown:

    Part What It Is When You Need It
    900-BBK Complete battery backup kit (board + 2x 7A/hr batteries) New installations requiring battery backup — up to 4 hours runtime
    900-BB Battery backup board only (no batteries) You already have batteries, just need the board
    900-BAT Replacement batteries (2x 7A/hr) Existing backup board with dead batteries — swap and go
    900-FA Standalone fire alarm relay module Add fire alarm to existing non-FA board without swapping it
    900-KL Key lock for enclosure cover (2 brass keys) Specs requiring tamper-proof enclosures — government, institutional

    Frequently Asked Questions

    Can I add a fire alarm relay to an existing PS902 or PS914?

    Yes. You can either add the standalone 900-FA relay module to your existing setup, or replace your current distribution board with an "FA" version like the 900-8P-FA to save cabinet space.

    Are Von Duprin PS900 power supplies compatible with other brands?

    While designed for Von Duprin, the PS900 series provides standard 12/24VDC regulated power, making them compatible with Schlage, Adams Rite, Falcon, and other electrified hardware that operates on 12 or 24 VDC. The distribution boards and relay controls are designed specifically for Von Duprin devices, but the base power output works universally.

    How long does the 900-BBK battery backup last during a power outage?

    The 900-BBK includes two 7A/hr batteries that provide up to 4 hours of backup power, depending on total system load. If your batteries are dead, grab the 900-BAT replacement set.

    What is the difference between the 900-4R and 900-4RL?

    The 900-4R is a straight 4 relay distribution board. The 900-4RL adds integrated logic for security interlocking. If your spec calls for mantrap, airlock, or sally port configurations, you need the 4RL.

    Can I retrofit a PS873 with a current PS914?

    Yes — the PS914RFK (Retrofit Kit) fits the PS914 into the existing PS873 enclosure without replacing the cabinet.

    What is the difference between the PS904 and PS914?

    Both deliver 4 amps of continuous 12/24 VDC. The PS914 handles 16A inrush current for Electric Latch Retraction (EL/QEL) motors. The PS904 has standard inrush for maglocks, strikes, and non-motorized devices at a lower price.

    • 900-KL Von Duprin Key Lock Cover
      Quick view

      900-KL Von Duprin Key Lock Cover

      900-KL Von Duprin Key Lock Cover Expert's Note: The 900-KL adds a keyed lock to your PS900 series power supply enclosure. Required on most government and institutional specs where UL294 compliance mandates secured access to access control equipment...
      MSRP: $68.00
      $41.85
      Add to Cart
    • 900-2RS Von Duprin Power Supply Board 900-2RS Von Duprin Power Supply Board
      Quick view

      900-2RS Von Duprin Power Supply Board

      900-2RS Von Duprin Power Supply Board — 2 Relay EL Control Expert's Note: The 900-2RS is the go-to board for two-door vestibule setups with electrified panic hardware. Each relay controls one EL device independently — when door 1 gets a request-to-exit,...
      MSRP: $295.00
      $181.54
      Add to Cart
    • PS914 Von Duprin Power Supply
      Quick view

      PS914 Von Duprin Power Supply

      PS914 Von Duprin Power Supply — 4A High Inrush Expert's Note: The PS914 is what you spec when your electrified exit devices draw heavy on initial activation. That 16 amp inrush rating handles the spike when EL trim energizes — standard 4 amp supplies...
      MSRP: $1,238.00
      $761.54
      Add to Cart
    • 900-8F Von Duprin Power Supply Board 900-8F Von Duprin Power Supply Board
      Quick view

      900-8F Von Duprin Power Supply Board

      900-8F Von Duprin Power Supply Board — 8 Fuse Protected Outputs Expert's Note: The 900-8F gives you 8 individually fuse protected outputs. Why does that matter? When one device shorts or a wire gets pinched, it blows its own fuse — the other seven...
      MSRP: $107.00
      $65.85
      Add to Cart
    • 900-8P Von Duprin Power Supply Board 900-8P Von Duprin Power Supply Board
      Quick view

      900-8P Von Duprin Power Supply Board

      900-8P Von Duprin Power Supply Board — 8 PTC Auto-Resetting Outputs Eliminate Service Calls: The 900-8P uses auto-resetting PTC outputs instead of glass fuses. When an output draws too much current — a shorted wire, a failing device — the PTC element...
      MSRP: $107.00
      $65.85
      Add to Cart
    • 900-FA Von Duprin Fire Alarm Relay 900-FA Von Duprin Fire Alarm Relay
      Quick view

      900-FA Von Duprin Fire Alarm Relay

      900-FA Von Duprin Fire Alarm Relay Expert's Note: The 900-FA is a standalone fire alarm relay module that adds emergency fire alarm interface to any PS900 series power supply. When the fire alarm trips, this module overrides normal access control per...
      MSRP: $107.00
      $65.85
      Add to Cart
    • 900-4R Von Duprin Power Supply Board 900-4R Von Duprin Power Supply Board
      Quick view

      900-4R Von Duprin Power Supply Board

      900-4R Von Duprin Power Supply Board — 4 Relay Distribution Expert's Note: When you've got 3-4 electrified devices running back to one power supply closet, the 900-4R is the board. Four independently controlled relays means each device gets its own...
      MSRP: $291.00
      $179.08
      Add to Cart
    • 900-BBK Von Duprin Battery Back up kit 900-BBK Von Duprin Battery Back up kit
      Quick view

      900-BBK Von Duprin Battery Back up kit

      900-BBK Von Duprin Battery Backup Kit — Complete with Batteries Expert's Note: The 900-BBK is the complete battery backup solution — board plus two 7A/hr batteries in one kit. When the building loses AC power, this keeps your electrified exit devices...
      MSRP: $417.00
      $256.62
      Add to Cart
    • Von Duprin 900-BAT Replacement Batteries
      Quick view

      900-BAT Von Duprin Power Supply Batteries

      900-BAT Von Duprin Power Supply Batteries The 900-BAT is a set of two 7A/hr replacement batteries for Von Duprin PS900 series power supply battery backup systems. Batteries don't last forever — if your backup test fails or the battery LED on the supply...
      MSRP: $211.00
      $129.85
      Add to Cart

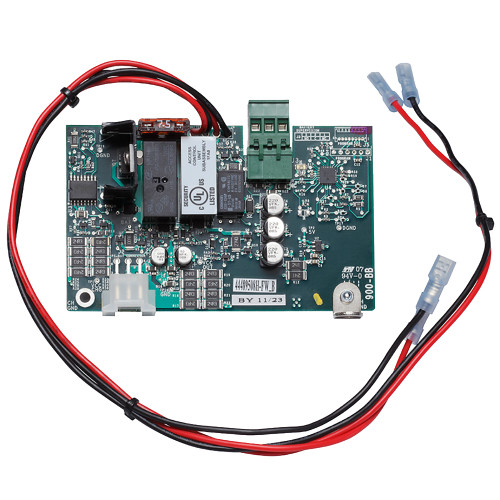

    • Von Duprin 900-BB Battery Backup Board
      Quick view

      900-BB Von Duprin Battery Backup Board

      900-BB Von Duprin Battery Backup Board The 900-BB is the battery backup board sold separately for Von Duprin PS900 series power supplies. If you already have batteries from a previous installation or you're buying the 900-BAT batteries separately, this...
      MSRP: $211.00
      $129.85
      Add to Cart
