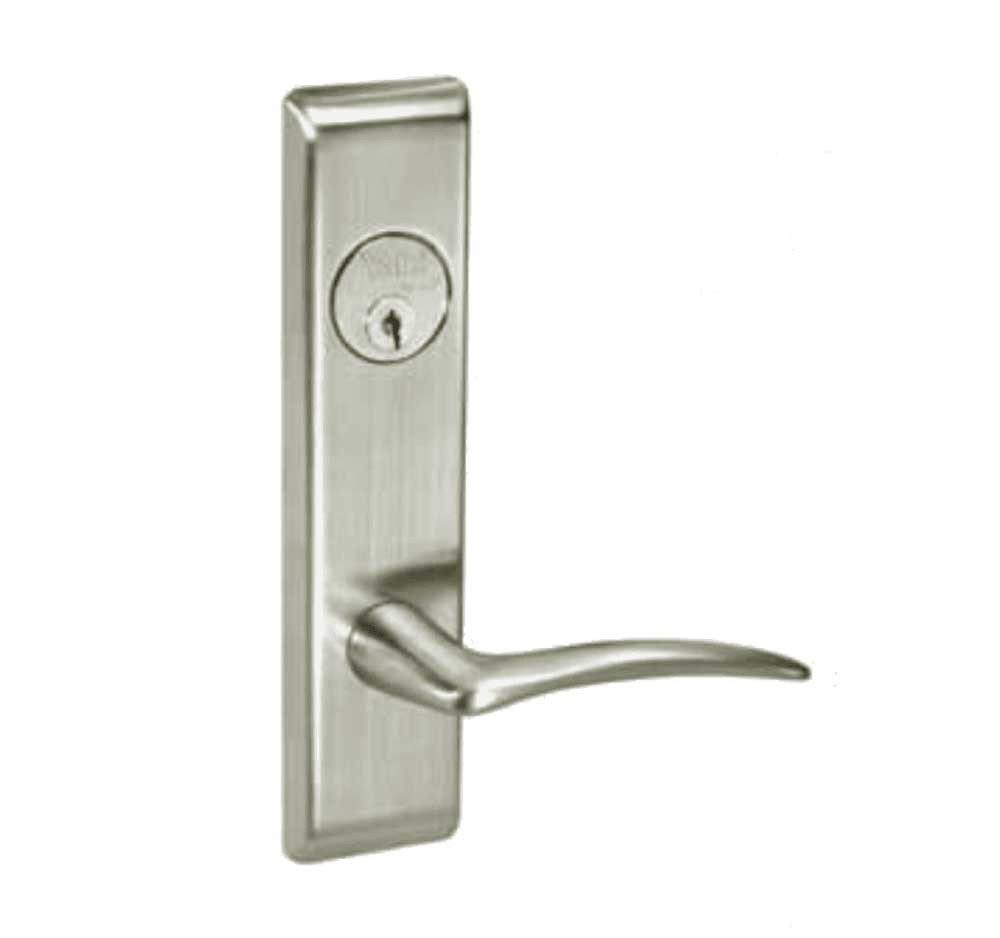

ARCN8823FL-619-LH Yale 8800FL Series Single Cylinder with Deadbolt Mortise Storeroom Lock with Indicator with Arcadia Lever - Left-Handed in Satin Nickel

Product Description

ARCN8823FL-619-LH Yale 8800FL Series Single Cylinder with Deadbolt Mortise Storeroom Lock with Indicator with Arcadia Lever - Left-Handed in Satin Nickel Finish

The Yale ARCN8823FL-619-LH mortise lock series is designed for uncompromising strength and durability in a range of commercial applications. The 8800 Series mortise locks offer a new measure of security to the door. The 8800 mortise lock series are certified to the ANSI/BHMA A156.13, Series 1000, Operational Grade 1.

Storeroom lock: Latchbolt retracted by lever outside. Deadbolt operated by key outside. When deadbolt is projected, outside lever is automatically locked. No inside lever or cylinder.

Features and Benefits:

• Satin Nickel finish
• Armor front: 8" x 1-1/4"
• Backset: 2-3/4" only
• Handing: Right handed
• Door thickness: 1-3/4" standard
• Case: Wrought steel, zinc dichromated.
• Single cylinder
• Lever: Arcadia Lever
• Escutcheon Design: CN Escutcheon
• Deadbolt: 1" throw, solid investment cast stainless steel.
• Latchbolt: 3/4" throw, stainless steel one-piece anti-friction
• Hubs: 3/8" solid steel, fine-blanked and heat treated for additional strength
