Product Description
The CXA9947L-02 3 26D RHR is a Von Duprin 99 Series Concealed Vertical Rod exit device with L-02 Lever trim in Satin Chrome (26D/626), sized for 3' doors. Classroom function — Outside lever is locked until unlocked by key, relocks automatically when door closes. Electrified model with Chexit Alarm (CXA). Ships less cylinder — order a mortise cylinder separately to match your keyway.
| Brand | Von Duprin (Allegion) |
| Part Number | CXA9947L-02 3 26D RHR |
| Series | Von Duprin 99 / 9947 |
| Function | Classroom |
| Lever Design | L-02 Lever |
| Finish | Satin Chrome (26D/626) |
| Handing | RHR |
| Door Size | 3 Foot |
| Device Type | Concealed Vertical Rod |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Electronics | CXA — Chexit Alarm |
| Warranty | 3 years limited manufacturer's warranty |
- Concealed vertical rods hidden inside the door for a clean look
- L-02 Lever trim — pull operation from outside for easier entry
- CXA (Chexit Alarm) for access control integration
- Ships less cylinder — order a mortise cylinder separately to match your keyway.
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Accessories: Compatible with Von Duprin trims, mullions, and surface-mounted closers. Pair with the 050500 strike for standard installations. Electrified models require a compatible power supply (PS873 or PS914). Contact us for help selecting the right trim and accessories for your door configuration.
Lock Depot sells brand new Von Duprin products with the full manufacturer warranty.

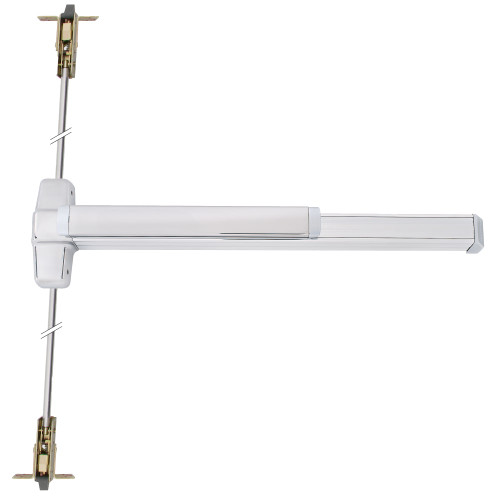

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
