Product Description

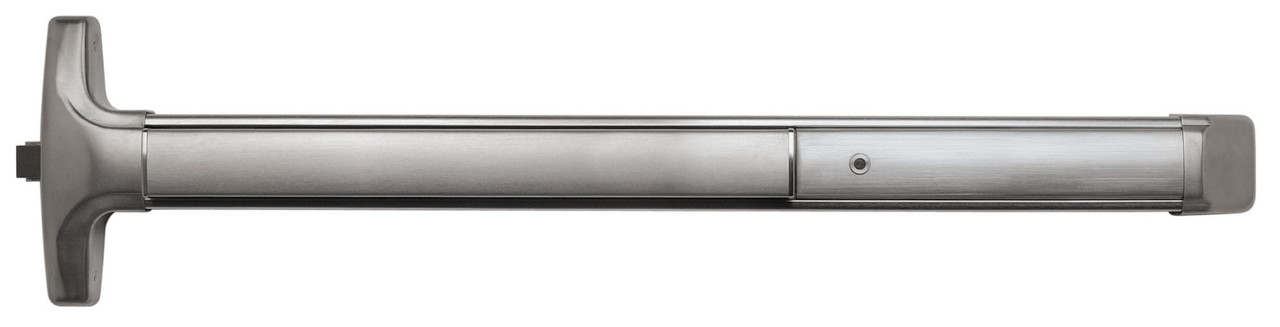

V40W CD 711 99 36 Detex V40 Series Rim Exit Device — Cylinder Dogging, Dark Bronze Anodized
Cylinder dogging gives you keyed control over when your exit device holds open. The Detex V40W lets authorized personnel retract the latch with a key cylinder during business hours, then re-engages automatically when locked.
Weatherized model — designed for exterior doors exposed to rain, snow, humidity, and temperature extremes. Sealed components prevent corrosion and alarm circuit failure.
Technical Specifications
| SKU | V40W CD 711 99 36 |
| Series | Detex V40 Value Series |
| Mount Type | Rim |
| Stile | Wide Stile, Weatherized |
| Grade | ANSI/BHMA Grade 1 |
| Function | Cylinder Dogging |
| Finish | Dark Bronze Anodized (711) |
| Strike | 99 Surface Strike |
| Device Length | 36" |
Compliance and Codes
- ANSI/BHMA A156.3 Grade 1 — highest commercial grade for panic hardware. Tested to 1,000,000 cycles.
- UL 305 — listed panic hardware for means of egress.
- ADA Compliant — operates with less than 15 pounds of force.
Function Details
- Cylinder dogging holds latch retracted with a key cylinder for authorized free egress during business hours. Cylinder sold separately.
What's in the Box
- Detex V40W Rim Exit Device
- 99 Surface Strike
- Mounting hardware and template
- Installation instructions
Note: Mortise cylinder sold separately — standard 1-1/8" mortise cylinder required for dogging function.
Pro-Installer FAQ
Can this device be cut down for narrower doors?
Yes, the pushbar can be field-cut for doors narrower than standard width. Measure carefully and cut from the hinge end only. The lock stile end must remain factory length for proper strike engagement.
What cylinder does this require?
Standard 1-1/8" mortise cylinder. Compatible with most major manufacturers — Schlage, Yale, Sargent, Corbin Russwin. Match your existing keyway for master key integration.
Does Detex cover this under warranty?
Detex provides a limited lifetime warranty on mechanical components and 3 years on electronic components. This covers manufacturing defects — not field damage or improper installation.
Why Lock Depot? We specialize in commercial exit hardware. Factory-sealed, Grade 1 Detex devices ship same day on available stock. Need help specifying the right device for your opening? Call us.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
