Product Description

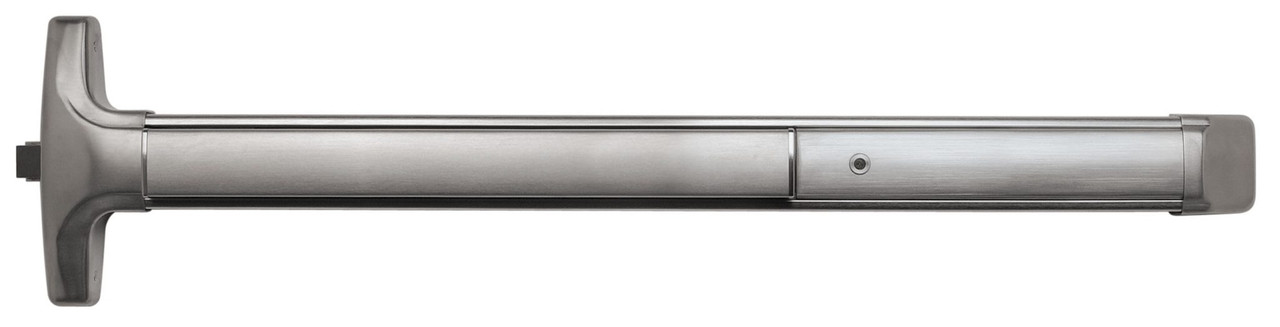

V40W LD 628 99 36 Detex V40 Series Rim Exit Device — Less Dogging, Satin Aluminum Clear Anodized
Fire-rated openings don't allow dogging — the door must latch positively every single time. The Detex V40W is purpose-built for fire-rated exits where code prohibits any hold-open mechanism.
Weatherized model — designed for exterior doors exposed to rain, snow, humidity, and temperature extremes. Sealed components prevent corrosion and alarm circuit failure.
Technical Specifications
| SKU | V40W LD 628 99 36 |
| Series | Detex V40 Value Series |
| Mount Type | Rim |
| Stile | Wide Stile, Weatherized |
| Grade | ANSI/BHMA Grade 1 |
| Function | Less Dogging |
| Finish | Satin Aluminum Clear Anodized (628) |
| Strike | 99 Surface Strike |
| Device Length | 36" |
Compliance and Codes
- ANSI/BHMA A156.3 Grade 1 — highest commercial grade for panic hardware. Tested to 1,000,000 cycles.
- UL 305 — listed panic hardware for means of egress.
- ADA Compliant — operates with less than 15 pounds of force.
Function Details
- No dogging mechanism — door latches every time it closes. Required for fire-rated openings where code prohibits dogging.
What's in the Box
- Detex V40W Rim Exit Device
- 99 Surface Strike
- Mounting hardware and template
- Installation instructions
Pro-Installer FAQ
Can this device be cut down for narrower doors?
Yes, the pushbar can be field-cut for doors narrower than standard width. Measure carefully and cut from the hinge end only. The lock stile end must remain factory length for proper strike engagement.
Why would I choose Less Dogging?
LD (Less Dogging) is required on fire-rated door openings where code prohibits holding the latch open. Even if the device itself isn't fire-rated, the opening may require LD based on the door's fire label.
Does Detex cover this under warranty?
Detex provides a limited lifetime warranty on mechanical components and 3 years on electronic components. This covers manufacturing defects — not field damage or improper installation.
Why Lock Depot? We specialize in commercial exit hardware. Factory-sealed, Grade 1 Detex devices ship same day on available stock. Need help specifying the right device for your opening? Call us.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
