Product Description

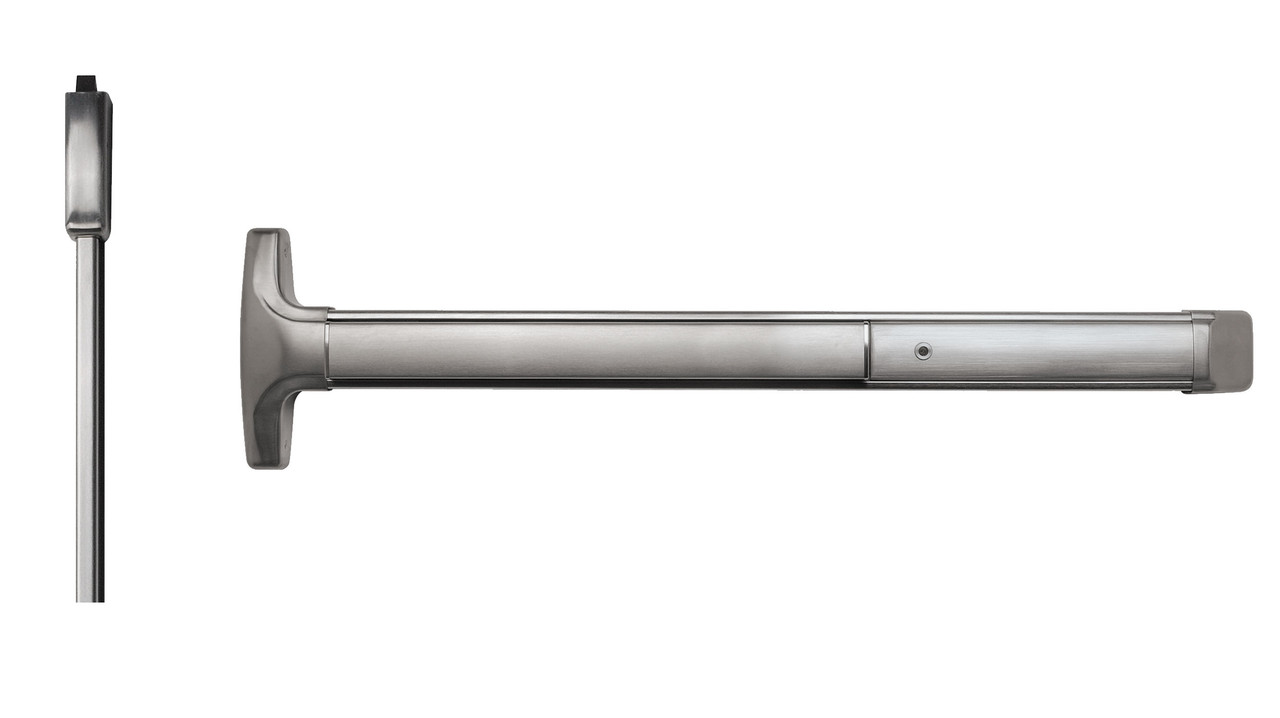

V51 EB CD 628 96 36X96 Detex V51 Series Rim Exit Device — Exit Alarm Battery, Cylinder Dogging, Satin Aluminum, 36X96"
Non-standard door heights demand exit hardware that fits. The Detex V51 series handles doors from 84" to 96" — the same Value Series reliability as the V50 but sized for the tall openings found in warehouses, loading docks, and institutional facilities. Grade 1 rated for commercial duty.
Technical Specifications
| Specification | Value |
|---|---|
| SKU | V51 EB CD 628 96 36X96 |
| Series | V51 (Value Series, extended height) |
| Mount Type | Rim |
| Function | Exit Alarm Battery, Cylinder Dogging |
| Finish | Satin Aluminum (628) |
| Strike | 96 strike |
| Door Size | 36X96" |
| Fire Rated | No |
| Grade | Grade 1 |
Compliance & Codes
UL Listed. ANSI/BHMA A156.3 Grade 1. NFPA 101 Life Safety Code compliant. ADA compliant.
What's in the Box
Detex V51 exit device, strike, mounting hardware, installation template, installation instructions.
Pro-Installer FAQ
Q: What door heights does the V51 cover?
A: The V51 handles doors from 84" to 96" in height. For standard 36" wide doors at standard height, use the V50 instead. The V51 uses extended vertical rods and longer pushbar assemblies to match tall openings.
Q: Can I use V50 trim on a V51?
A: Yes — V51 uses the same outside trim as the V50 and V40 series. The only difference is the device body length and vertical rod lengths for taller doors.
Product images are representative and may not depict the exact SKU, finish, or configuration listed. Always verify specifications before ordering.
