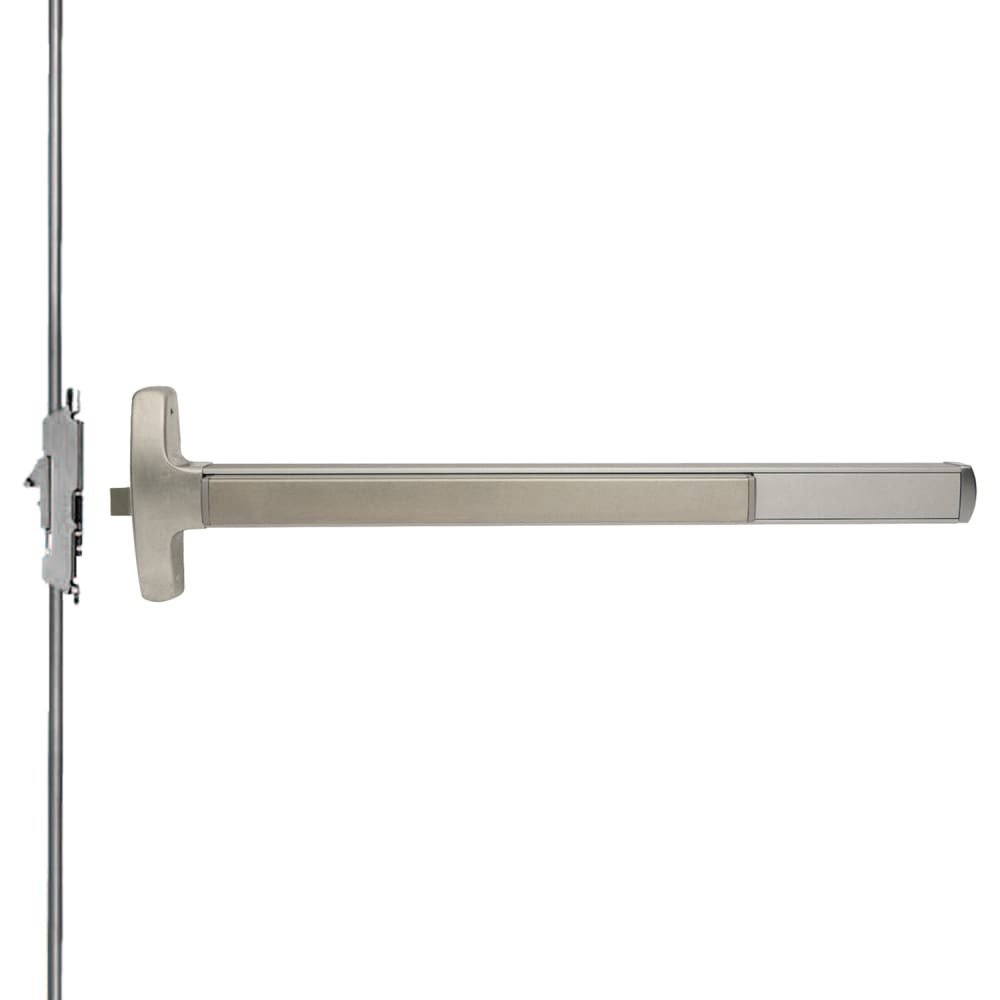

F24CWDC-L-DANE-US32D-2-RHR Falcon 24 Series Fire Rated Wood Door Concealed Vertical Rod Device with 712L Dane Lever Trim in Satin Stainless Steel

Product Description

F24CWDC-L-DANE-US32D-2-RHR Falcon 24 Series Fire Rated Wood Door Concealed Vertical Rod Device with 712L Dane Lever Trim in Satin Stainless Steel Finish

This device is for a 24" door

The Falcon F24CWDC-L-DANE-US32D-2-RHR Wood Door Concealed Vertical Rod Device is combine the safety of a fire-rated device with the clean aesthetics that come with a narrow stile and concealed vertical rod installation. The Falcon F-24CWCD Series Wood Door Concealed Vertical Rod Device offers great value, clean styling, a versatile narrow stile design and provide security of two point latching. This F-24CWCD Series are certified to ANSI A156.3-2001 Grade 1 standard.

Features and Benefits:

• Satin Stainless Steel finish
• Cylinders are not included
• Handing: Right hand reversible
• 712L Dane lever trim
• Latchbolt: Top stainless steel, 3/4" throw. Bottom bolt 1/2" throw.
• Latch retention hold standard with top latch
• Device lengths: 2 feet (24 inch)
• Fire rated hardware
• Doors: 1-3/4" thick wood door
• Projections: 2-3/4" maximum
• Deadlocking latchbolt: Standard with top latch
• Fasteners: All mounting screws are concealed. All machine screws standard.
• Strike: 4188 mortised top and 2130 flush strike bottom (Included)
