Product Description

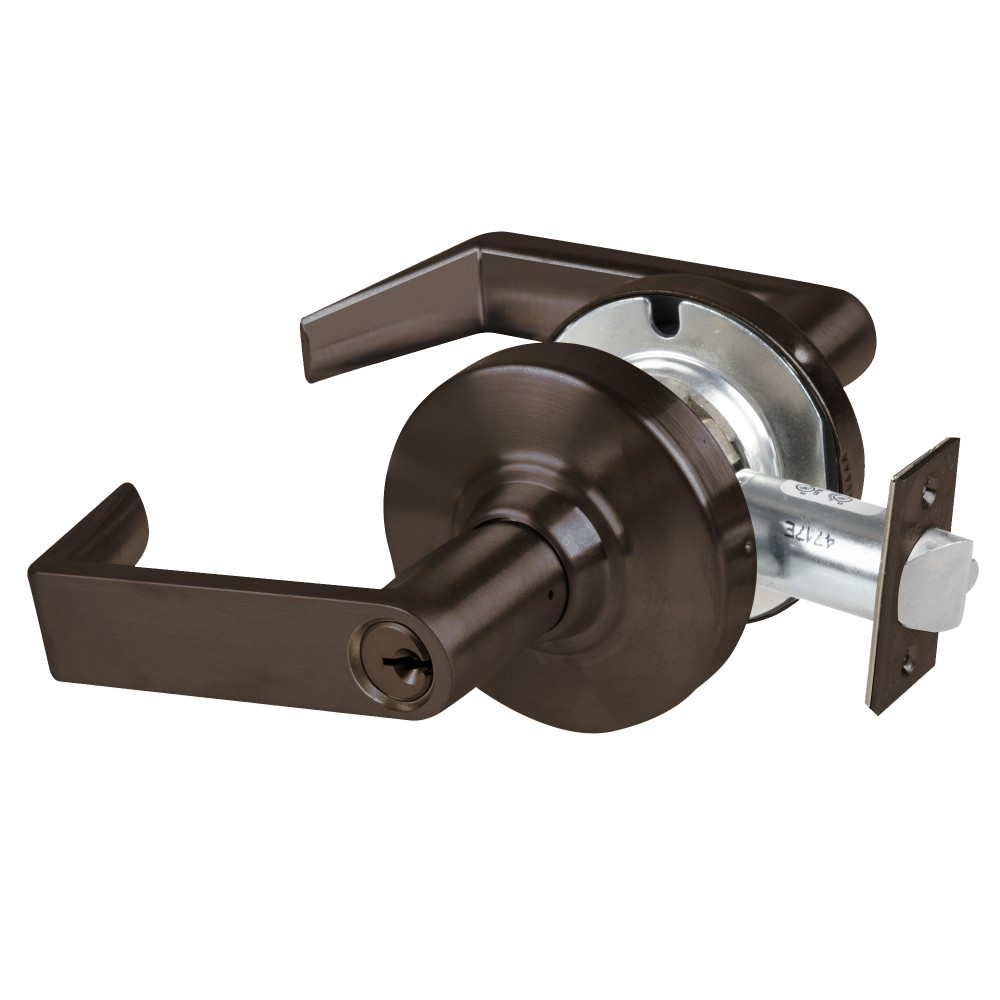

ND91PD-RHO-613 Schlage ND Series — Rhodes Lever, Vandlgard Entrance/Office Function, Oil Rubbed Dark Bronze
The Field Report
The Schlage ND Series is the workhorse of commercial cylindrical locks — if you've done any institutional work, you've installed hundreds of these. The ND91PD is the vandlgard entrance/office function (ANSI F82): Push-button locking. Outside lever disengages when locked — rotates freely up and down so vandals can't pry or torque the chassis. Inside lever always free for egress. Key or inside turn unlocks.
The Rhodes lever has a rounded traditional profile that holds up well in high-traffic corridors. This one ships in Oil Rubbed Dark Bronze (613). Non-handed, so you don't need to worry about swing direction. Fits standard ANSI 161 cylindrical prep — 2-1/8" cross bore, 1" edge bore — which means it drops right into any door that previously had an ND, NDE, or most other cylindrical locks.
Why the ND Over Cheaper Cylindrical Locks
The Vandlgard trim is the key differentiator. When the lock is in the locked position, the outside lever free-spins — there's nothing for someone to grab onto and torque. Schlage tested these to withstand 3,100 in-lb of abusive lever torque and 1,600 lbs of offset lever pull. Compare that to a Grade 2 lock that starts flexing at a fraction of that. Schools, hospitals, and government buildings spec Vandlgard because the lever just doesn't give vandals anything to work with.
The ND also runs past 3 million cycles without failure — that's Grade 1 certification and then some. The chassis is zinc-plated steel, levers are pressure-cast zinc plated to match finish. You won't see droop or wobble even after years of heavy use.
Avoid a Callback
Double-check your door thickness before ordering. Standard range is 1-5/8" to 2-1/8". If you're on a 1-3/8" door, you'll need the spacer kit (sold separately). Also verify your keyway — this ships with Schlage C keyway standard. If the building is on Everest C123, Primus, or a restricted keyway, order the correct cylinder option to avoid a return trip.
Compatibility
- Door prep: ANSI 161 cylindrical (2-1/8" cross bore, 1" edge bore)
- Door thickness: 1-5/8" to 2-1/8" standard
- Backset: 2-3/4" standard (2-3/8", 3-3/4", 5" optional)
- Cylinder: 6-pin solid brass, Schlage C keyway with 2 nickel silver keys
- Keying: Master key, grand master, construction key, interchangeable core options available
- Hands: Non-handed
Specifications
| Grade | ANSI/BHMA Grade 1 (A156.2 Series 4000) |
| Function | Vandlgard Entrance/Office (F82) |
| Lever | Rhodes |
| Finish | Oil Rubbed Dark Bronze (613) |
| Faceplate | 1-1/8" x 2-1/4" square corner, beveled |
| Latch throw | 1/2" standard (3/4" for pairs) |
| Fire rating | UL/cUL listed, 3-hour fire door |
| ADA | ICC A117.1 compliant |
| Warranty | 10-year limited |
