Product Description
The RX99L-BE-02 4 26D LHR is a Von Duprin 99 Series Rim exit device with L-02 Lever trim in Satin Chrome (26D/626), sized for 4' doors. Passage function — Lever is always unlocked from both sides. Electrified model with Request to Exit (RX). Prepped for SFIC — order SFIC housing and core separately to match your keyway.
| Brand | Von Duprin (Allegion) |
| Part Number | RX99L-BE-02 4 26D LHR |
| Series | Von Duprin 99 / 99 |
| Function | Passage |
| Lever Design | L-02 Lever |
| Finish | Satin Chrome (26D/626) |
| Handing | LHR |
| Door Size | 4 Foot |
| Device Type | Rim |
| Cylinder | Less Cylinder |
| Fire Rating | Non Fire Rated |
| Grade | ANSI/BHMA Grade 1 |
| Electronics | RX — Request to Exit |
| Warranty | 3 years limited manufacturer's warranty |
- Wide stile pushpad with non-handed rim mechanism
- L-02 Lever trim — pull operation from outside for easier entry
- RX (Request to Exit) for access control integration
- Prepped for SFIC — order SFIC housing and core separately to match your keyway.
- In stock at Lock Depot — same-day shipping on orders before 3 PM EST
Works With: Von Duprin 99 Series exit devices. Also compatible with 98 Series. For electrified devices, pair with a Von Duprin PS914 or PS906 power supply.
Lock Depot sells brand new Von Duprin products with the full manufacturer warranty.

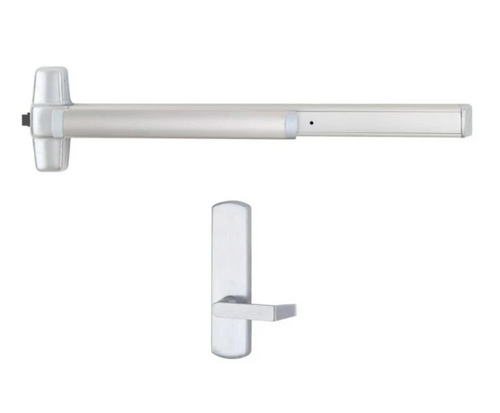

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
3 years limited manufacturer's warrantyProduct Videos
Custom Field
Product Type Exit Device - Rim
Series 99
Finish Satin Chrome
Trim L-02 Lever
Fire Rated Non Fire Rated
Function Passage
Cylinder Less Cylinder
Voltage 24VDC
Monitoring Request to Exit
