Product Description
Inside thumbturn locks the outside lever for privacy. Emergency key override from outside. Standard for commercial restrooms and private offices.

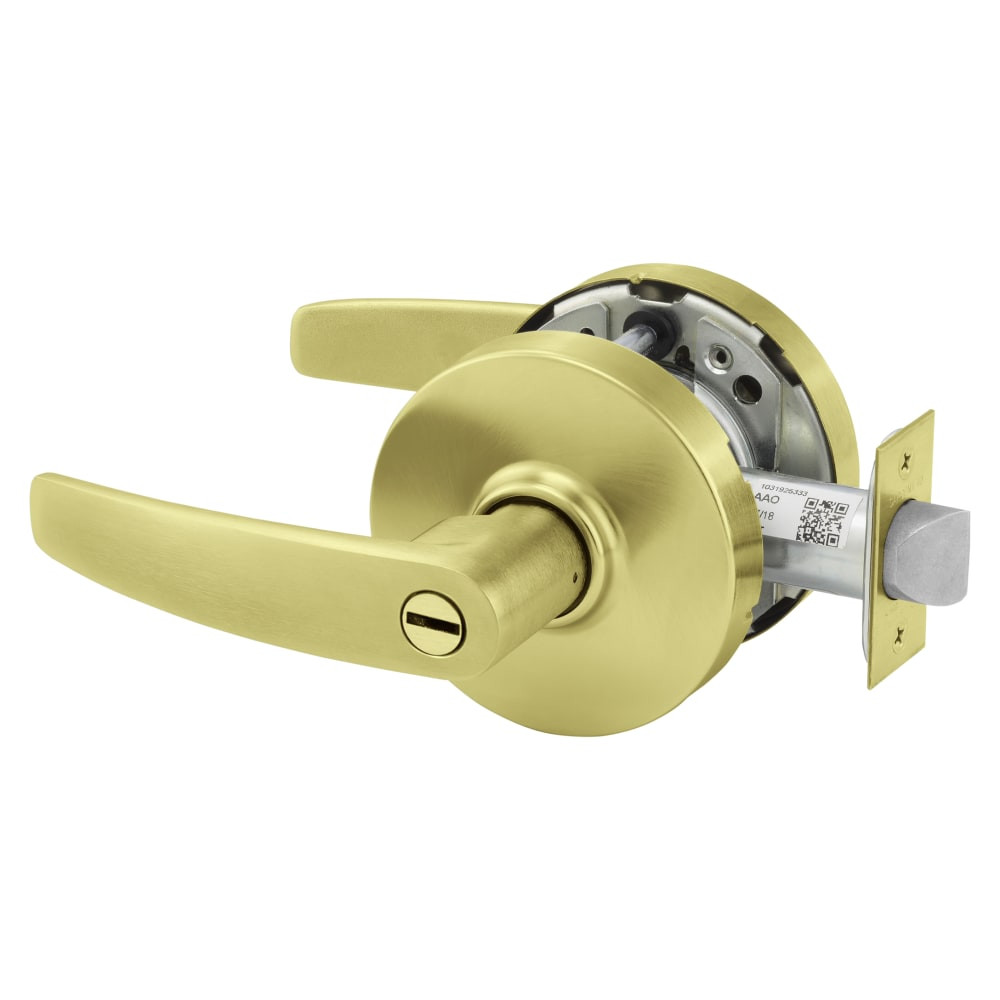

The Sargent 10XU65-LB-04 is a Grade 1 cylindrical lock from the 10X Line with Privacy function — inside thumbturn locks the outside lever. Emergency key override from outside.
This unit comes with L Rose, B Lever in Satin Brass — the 04 finish making a huge comeback in commercial design. Popular on boutique hotels, upscale office buildings, and any project where the architect wants warm tones. Cylindrical locks install in a standard 2-1/8" bore hole — no mortise pocket required. Fastest commercial lock to install.
| Certification | ANSI A156.2, BHMA Grade 1 |
| Backset | 2-3/4" |
| Warranty | 7-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating for cylindrical locks
- Standard 2-1/8" bore — fast install, no mortise pocket needed
- Through-bolt mounting for maximum resistance to lever torque attacks
- Satin Brass finish
- Field reversible — works on any swing direction
Why Buy From Lock Depot? — We're locksmiths, not just an online store. Every order is reviewed by someone who knows the difference between Fail Safe and Fail Secure, who can tell you which trim fits your prep, and who'll pick up the phone at (877) 365-5625 if something doesn't look right. Authorized Sargent dealer. Full manufacturer warranty. Same day shipping.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
