Product Description

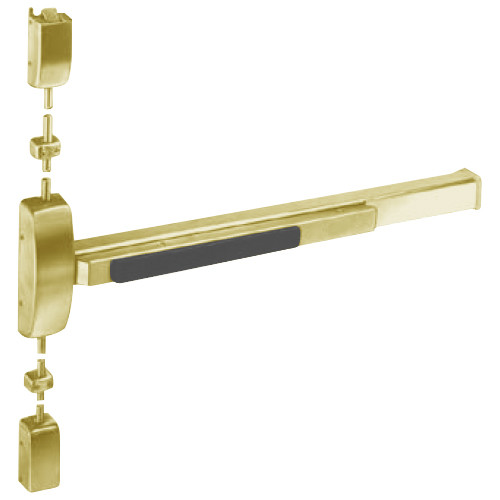

The Sargent 12-8710E-RHR-03 is a 80 Series surface vertical rod exit device in Bright Brass (US3/605). Designed for high-traffic commercial egress applications where reliable, code-compliant exit hardware is required.
Exit Only function: No outside trim — push bar operation from inside only.
| SKU Breakdown: 12-8710E-RHR-03 | |
| 12 | Door width (inches) |
| 8710E | Device model: 8710E |
| RHR | Right Hand Reverse |
| 03 | Finish: Bright Brass |
Pro-Tip from Our Locksmiths: If you're replacing old Von Duprin or Precision hardware, check your header prep. Sargent vertical rod devices may need different top strike locations.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 12-8710E-RHR-03 |
| Function | Exit Only |
| Finish | Bright Brass (US3/605) |
| Mount Type | Surface Vertical Rod |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 5-Year Limited |
- UL listed for panic and fire exit hardware
- Non-handed design — one device fits both left and right hand doors
- Bright Brass (US3/605) finish — commercial grade
- Meets NFPA 80, NFPA 101, and IBC egress requirements
Works With: Sargent 80 Series trim and accessories. For electrified applications, pair with Sargent power supplies and controllers. Compatible with most standard commercial door frames.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
