Rim exit devices are the simplest and most common configuration — the latch engages the strike at the edge of the door. One device, one strike, one installation.

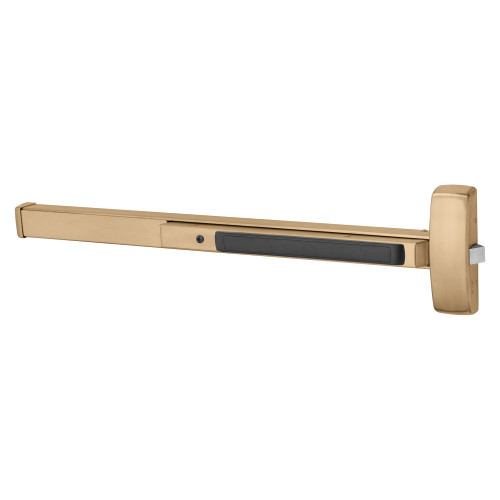

The Sargent 12-8815G-10 is a fire-rated Grade 1 rim exit device from the 80 Series for 48" openings with Passage function. UL listed for fire-rated openings up to 3 hours.
Fire Rated (12- prefix) — This device is UL listed for fire-rated openings. Do NOT substitute a non-fire-rated device (8- prefix) on a fire-rated opening — your fire marshal will require removal and replacement.
Pro-Tip from Our Locksmiths: Exit devices are HANDED — and getting the handing wrong on a $2,000+ device is an expensive mistake. Stand OUTSIDE the door and face it: if the hinges are on the LEFT, it's Left Hand (LH). If the hinges are on the RIGHT, it's Right Hand (RH). For doors that swing toward you, add 'Reverse' — LHR or RHR.
| Certification | ANSI A156.3, BHMA Grade 1, UL 10C |
| Warranty | 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial exit device rating
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- Satin Bronze finish
Related Products:
- Browse all Sargent Exit Devices — Rim, surface vertical rod, and concealed vertical rod
Ships Same Day — Order before 2PM EST and your Sargent hardware ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Questions? Call (877) 365-5625 or contact us online.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 5-year limited warranty on exit devices covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Exit Device - Rim
Function Passage
Series 80
Finish Satin Bronze
Mount Type Rim
