Product Description

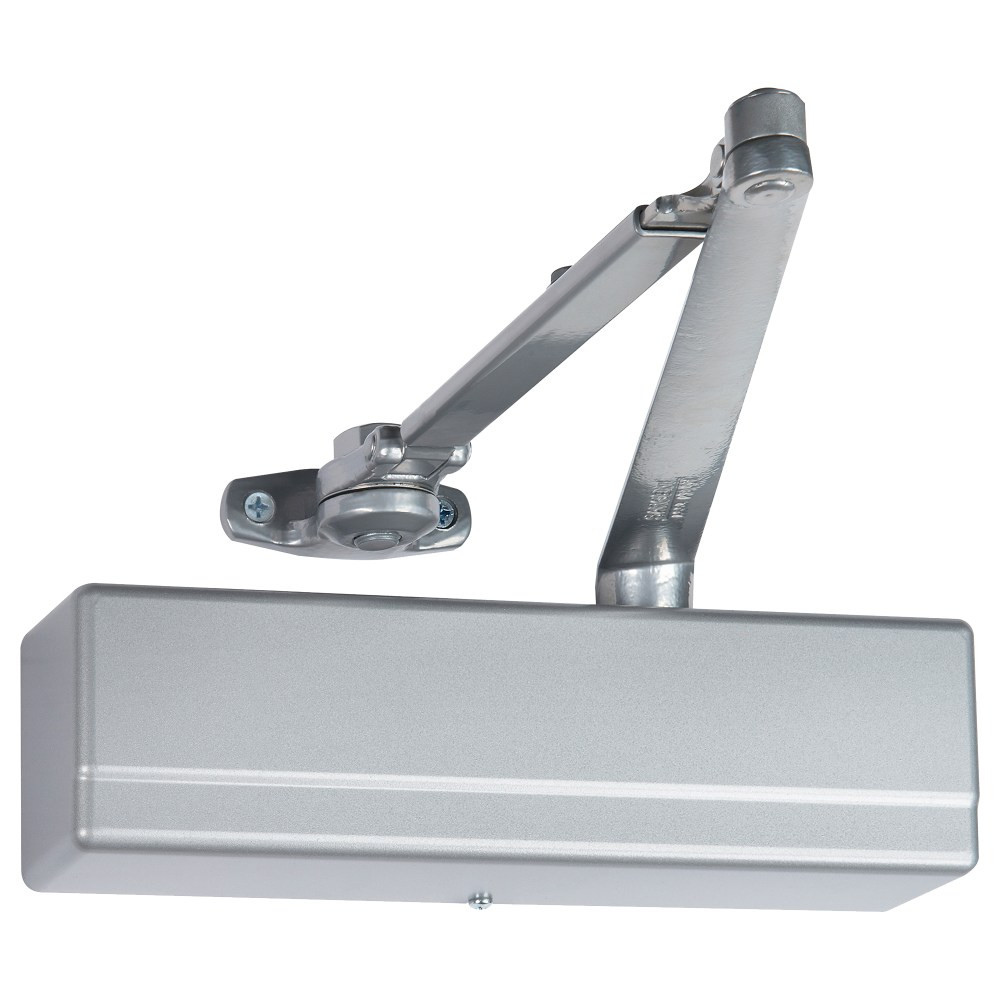

The Sargent 1431-UH-TB-EN is a 1431 Series door closer in Aluminum (628). Cast iron body with full rack-and-pinion mechanism for smooth, controlled closing on commercial doors up to the rated size.
| SKU Breakdown: 1431-UH-TB-EN | |
| 1431 | Series 1431 closer body |
| UH | Universal hold-open arm |
| TB | Thru-bolt mounting |
| EN | Finish: Aluminum |
Pro-Tip from Our Locksmiths: When mounting a Sargent closer on a parallel arm bracket, make sure you order the correct arm — PA arms and standard arms are NOT interchangeable.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 1431-UH-TB-EN |
| Series | Sargent 1431 |
| Finish | Aluminum (628) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | Limited Warranty |
- Cast iron body with rack-and-pinion mechanism
- Adjustable closing speed, latching speed, and backcheck
- Aluminum (628) finish
- UL listed for fire-rated door assemblies
Works With: Standard commercial door frames. Arms sold separately — verify your mounting condition (regular, parallel, top jamb) before ordering.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a limited warranty on door closers covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Door Closer
Series 1431
Finish Aluminum
Trim Hold Open Arm
Mount Type Surface
