Product Description
Same modular platform as the 1500 but with a deeper cavity (1-5/8") to handle up to a 1" deadbolt. If the opening has a mortise lock with a deadbolt throw, this is your strike. HES 1600 gives you ElectroLynx connectors, integrated adjustability, fully finished components in 8 colors, and the same interchangeable faceplate system as the 1500. 1,500 lbs static, 70 ft-lbs dynamic, million-cycle endurance. Dual voltage 12/24 VDC/VAC, PoE friendly. Complete Pacs available: CS (latchbolt + deadbolt), CLB (latchbolt only), CDB (deadbolt only). UL 10C fire rated. UL 1034 outdoor rated. Field selectable fail-secure/fail-safe.

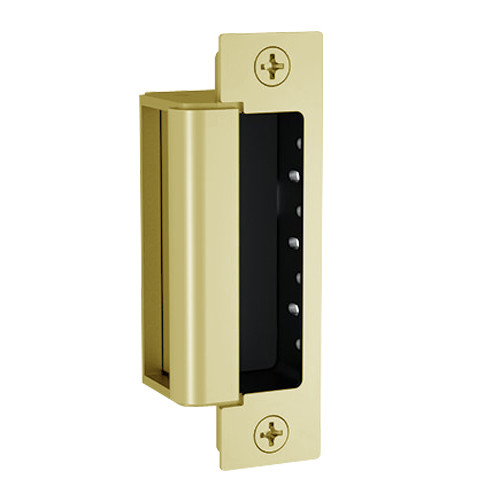

Finished in satin brass. Includes lock monitor. Complete Pac for deadbolt locks — includes ND and HM faceplates.
Warranty Information
5 years limited manufacturer's warrantyProduct Videos
Custom Field
Series 1600
Color 606 Satin Brass
Monitoring Lock Monitor
Voltage 12/24 VDC/VAC
Mode Fail Secure (Field Selectable)
Fire Rated Yes
Mount Type Cut-In
Function Electric Strike
