Product Description
22DT-SP313-4 Von Duprin 22 Series with 210DT Dummy Trim Rim Mounted Exit Device in Duranodic Dark Bronze
The Von Duprin 22DT-SP313-4 is a wide stile pushpad rim exit device built for standard aluminum storefront and glass doors. Dummy Trim — non-functional outside pull for appearance. Provides a handle on the outside without any latch control. No cylinder required for this function.
The 22 Series pushpad provides a clean, modern activation surface that blends with aluminum storefront framing. Available in 4-foot width to match your door size. Unlike crossbar devices, the pushpad concentrates the push area in the center of the door for a streamlined look. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The most common 22 Series install issue is strike alignment on aluminum frames. The strike pocket on storefront frames is often shallow — check your frame depth before ordering. If it's under 1", you may need a shim kit or surface-applied strike.
| Specifications | |
|---|---|
| Part Number | 22DT-SP313-4 |
| Function | DT - Dummy Trim |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Door Width | 4-Foot (48") |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Wide stile pushpad design for standard aluminum storefront doors
- Hex key dogging standard — holds latch retracted during business hours
- 4-foot width for wide 48" door openings
- Dark Bronze (SP313/313) sprayed finish — weather resistant
- Non-handed — same device fits LHR and RHR door swings

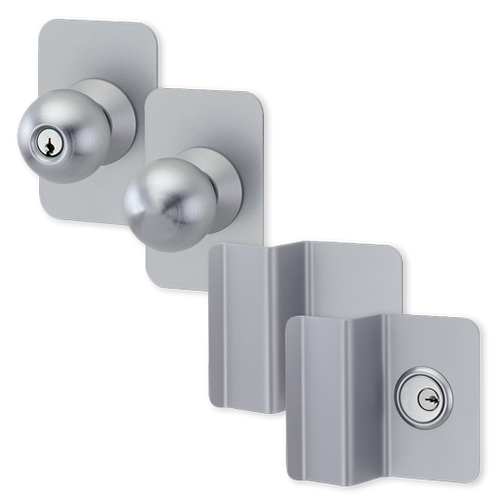

Works With: Add outside trim separately: 210DT Dummy Pull, 230TP Thumbpiece, or 210K Knob Trim. For pairs of doors, see the 2227 Surface Vertical Rod. For narrow stile doors, see the 55 Series.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
