Product Description

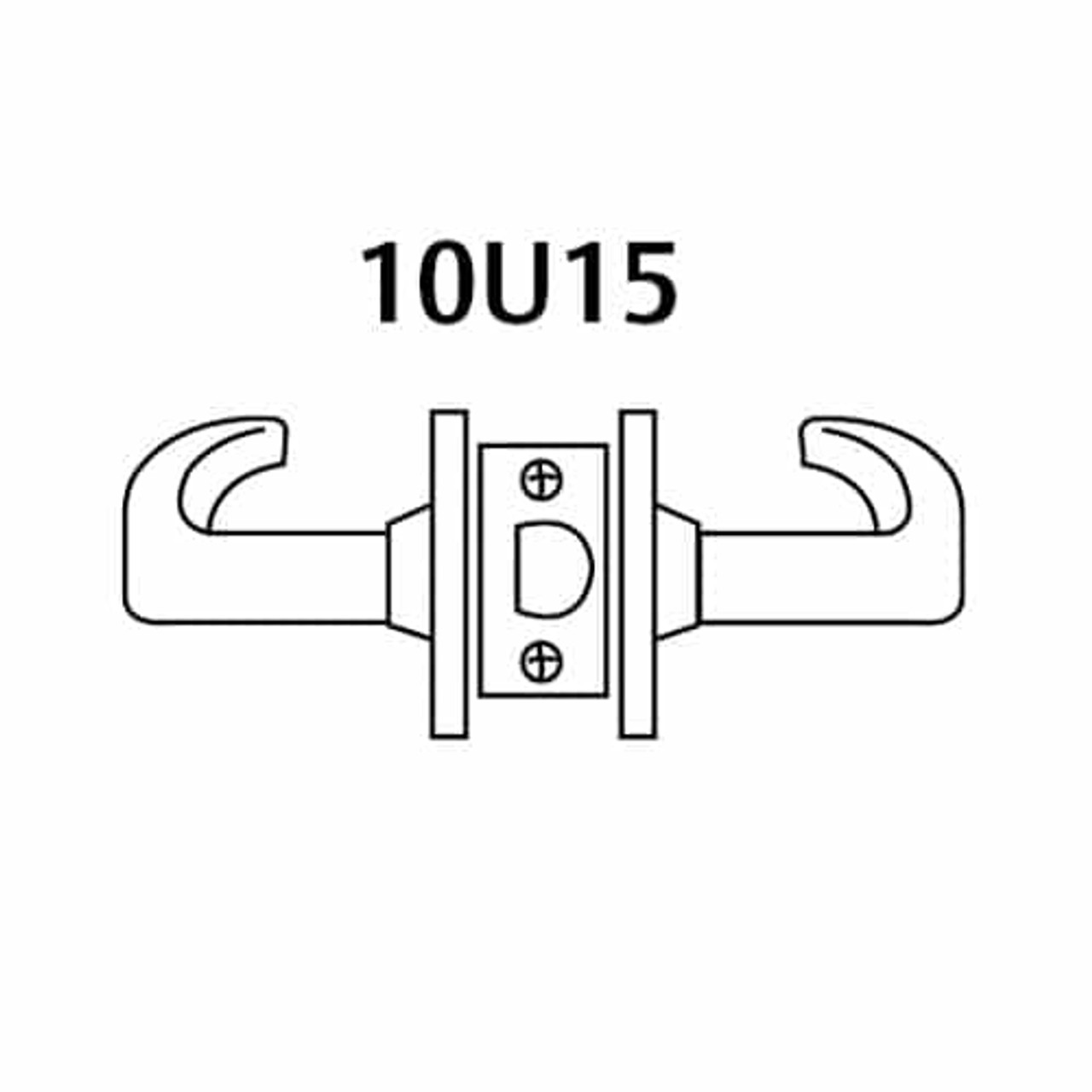

The Sargent 28-10U15-LB-26 is a 10 line cylindrical lock with Passage function in Bright Chrome (US26/625). Both levers always unlocked from both sides. No locking mechanism. Grade 1 certified for heavy commercial use.
No cylinder required for this function.
| SKU Breakdown: 28-10U15-LB-26 | |
| 28 | Backset/chassis configuration |
| 10U15 | Series and Passage function |
| LB | Trim: B Lever |
| 26 | Finish: Bright Chrome |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-10U15-LB-26 |
| Series | Sargent 10 line |
| Function | Passage |
| Trim / Lever | B Lever |
| Finish | Bright Chrome (US26/625) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Passage function for commercial access control
- Bright Chrome (US26/625) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Sargent provides a 7-year limited warranty on cylindrical locks covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications. For warranty service, contact ASSA ABLOY Customer Care.Product Videos
Custom Field
Product Type Cylindrical Lock
Function Passage
Finish Bright Chrome
Trim Lever
Mount Type Cylindrical
