Product Description

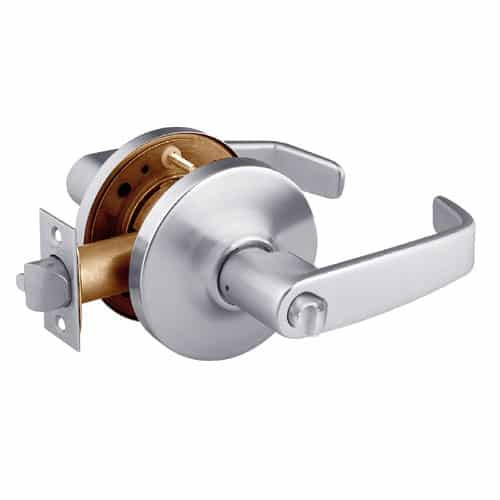

The Sargent 28-10U68-GL-26D is a 10 line cylindrical lock with Privacy function in Satin Chrome (US26D/626). Inside thumbturn locks the outside lever. Emergency key override from outside. Inside always free. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 28-10U68-GL-26D | |
| 28 | Backset/chassis configuration |
| 10U68 | Series and Privacy function |
| GL | Trim: L Lever |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-10U68-GL-26D |
| Series | Sargent 10 line |
| Function | Privacy |
| Trim / Lever | L Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Privacy function for commercial access control
- Satin Chrome (US26D/626) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
