Product Description
The Sargent 28-11G05-LL-03 is a 10 Line cylindrical lock with Entry/Office function in Bright Brass (US3/605). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 28-11G05-LL-03 | |
| 28 | Backset/chassis configuration |
| 11G05 | Series and Entry/Office function |
| LL | Lever/rose design: LL |
| 03 | Finish: Bright Brass |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-11G05-LL-03 |
| Function | Entry/Office |
| Finish | Bright Brass (US3/605) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Entry/Office function for commercial access control
- Bright Brass (US3/605) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.

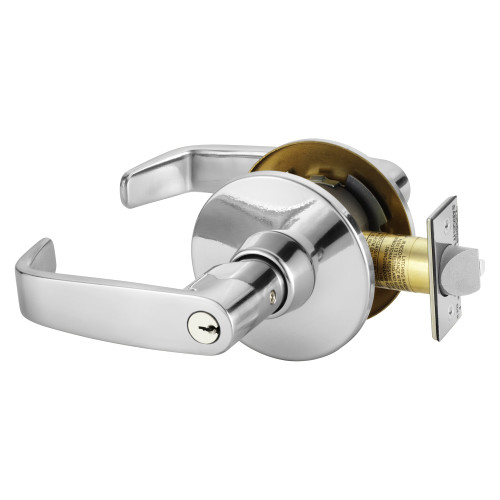

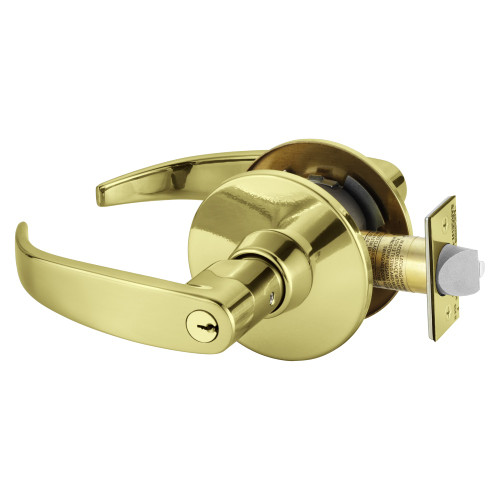

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
