Product Description
The Sargent 28-65G15-3-KL-26D is a 10 Line cylindrical lock with Communicating function in Satin Chrome (US26D/626). Both levers can be locked and unlocked independently by key. For connecting rooms. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 28-65G15-3-KL-26D | |
| 28 | Backset/chassis configuration |
| 65G15 | Series and Communicating function |
| 3 | Lever/rose design: 3 |
| KL | Finish: Satin Chrome |
| 26D | Configuration modifier |
Pro-Tip from Our Locksmiths: The 10 Line is Sargent's workhorse cylindrical lock. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-65G15-3-KL-26D |
| Function | Communicating |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Communicating function for commercial access control
- Satin Chrome (US26D/626) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.

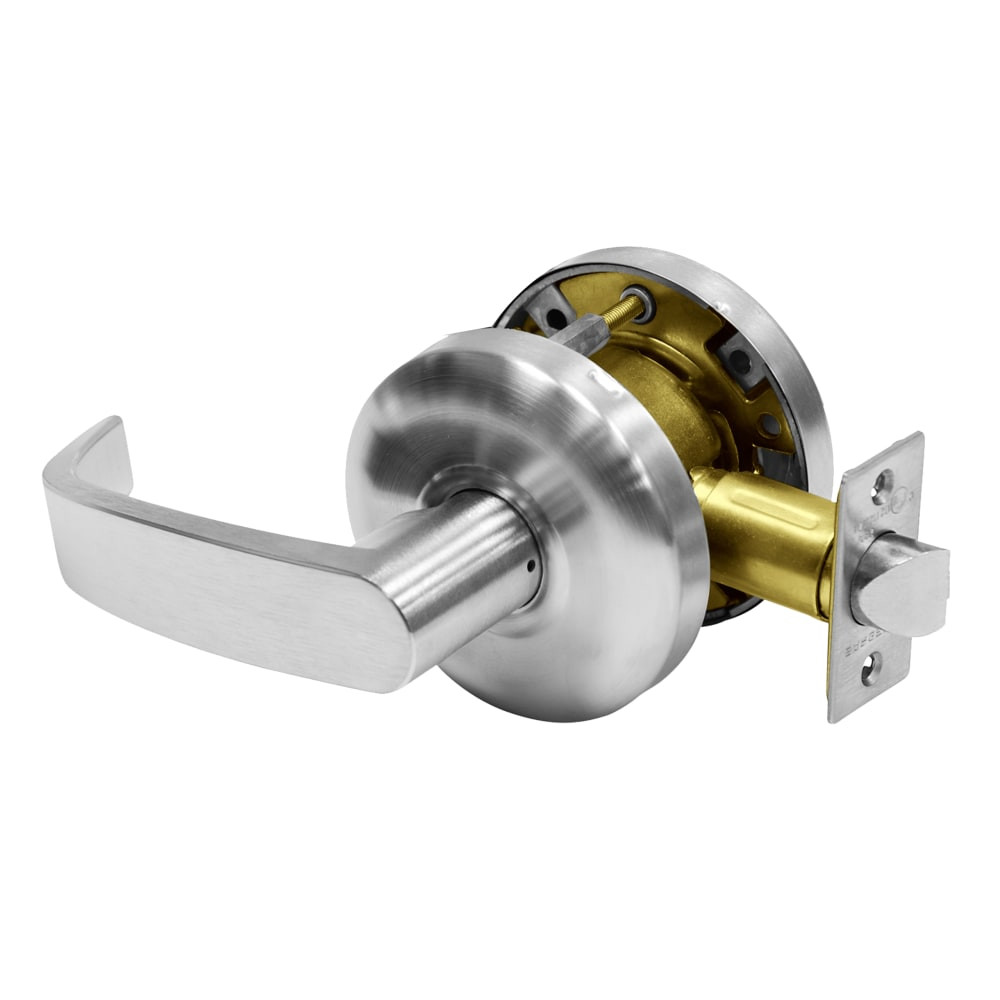

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
