Product Description

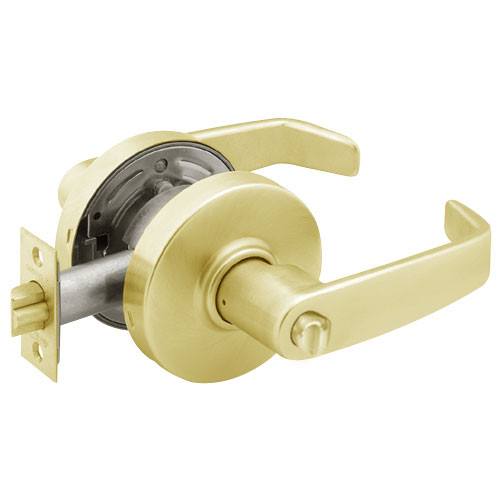

The Sargent 28-7U68-LL-04 is a 10 Line cylindrical lock with Privacy function in Satin Brass (US4/606). Inside thumbturn locks the outside lever. Emergency key override from outside. Inside always free. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 28-7U68-LL-04 | |
| 28 | Backset/chassis configuration |
| 7U68 | Series and Privacy function |
| LL | Trim: L Lever |
| 04 | Finish: Satin Brass |
Pro-Tip from Our Locksmiths: Sargent cylindrical locks are a solid mid-range choice for commercial jobs where mortise prep isn't in the budget. Grade 1 certified with a clean, professional look.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28-7U68-LL-04 |
| Function | Privacy |
| Trim / Lever | L Lever |
| Finish | Satin Brass (US4/606) |
| Mount Type | Cylindrical |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Privacy function for commercial access control
- Satin Brass (US4/606) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
