Product Description

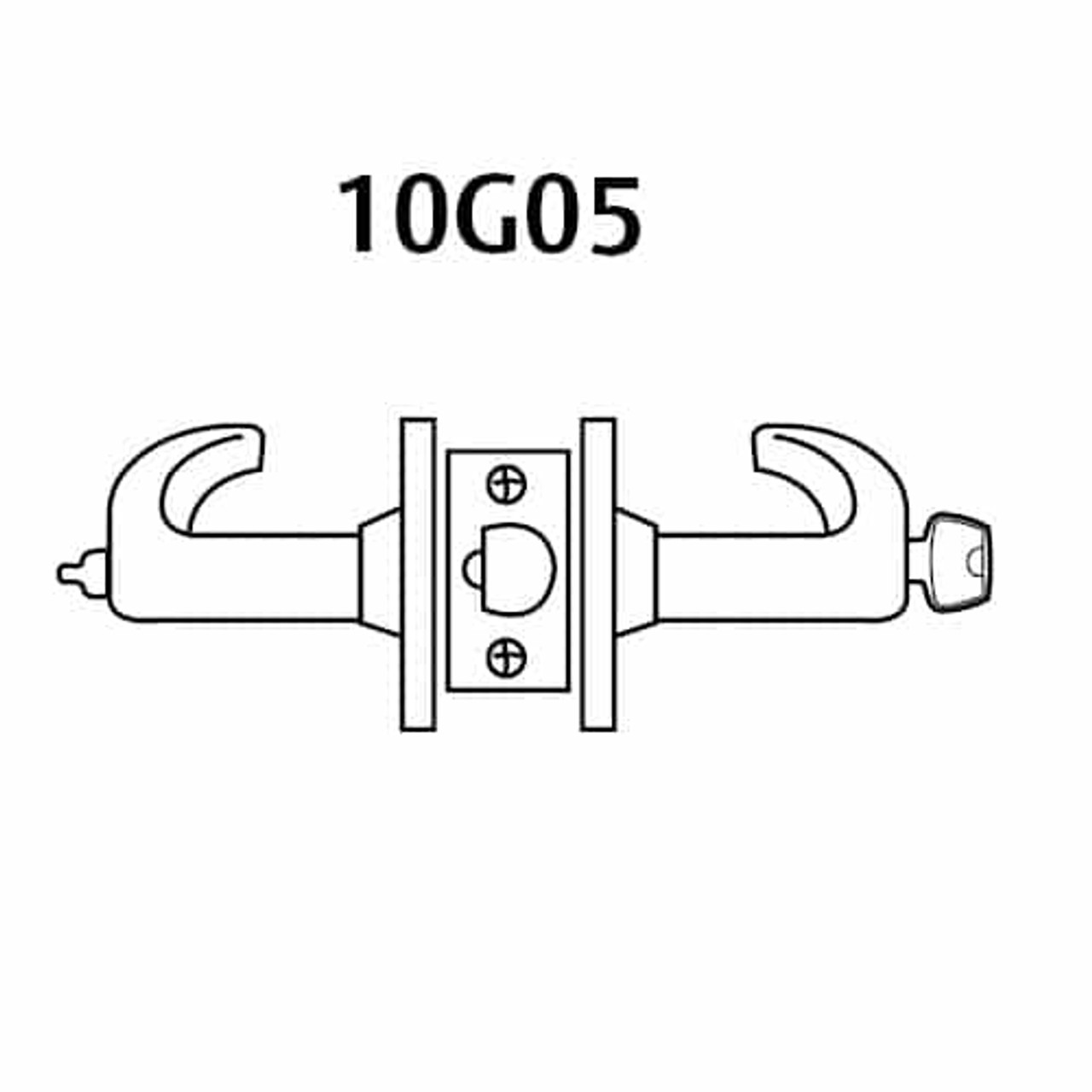

The Sargent 2860-10G05-LB-26D is a 10 line cylindrical lock with Entry/Office function in Satin Chrome (US26D/626). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 2860-10G05-LB-26D | |
| 2860 | Backset/chassis configuration |
| 10G05 | Series and Entry/Office function |
| LB | Trim: B Lever |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 2860-10G05-LB-26D |
| Series | Sargent 10 line |
| Function | Entry/Office |
| Trim / Lever | B Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Entry/Office function for commercial access control
- Satin Chrome (US26D/626) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Free Expert Support — As an authorized Sargent distributor, Lock Depot provides full manufacturer warranty coverage and same day shipping on most orders. Call (877) 365-5625 for personalized help.

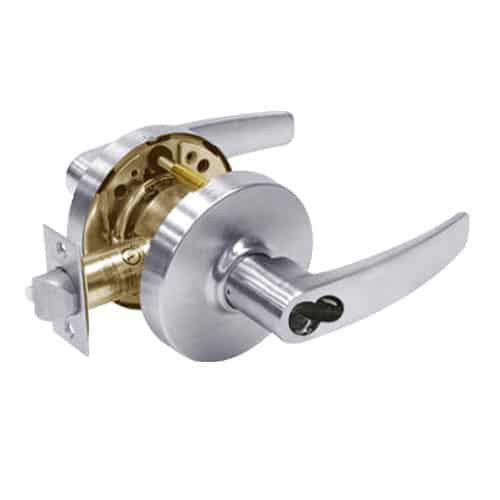

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
