Product Description
The Sargent 2860-11G17-LB-10 is a 10 Line cylindrical lock with Institution function in Satin Bronze (US10/612). Both levers locked and unlocked by key only. No thumbturn or push-button. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 2860-11G17-LB-10 | |
| 2860 | Backset/chassis configuration |
| 11G17 | Series and Institution function |
| LB | Lever/rose design: LB |
| 10 | Finish: Satin Bronze |
Pro-Tip from Our Locksmiths: For retrofit jobs, Sargent cylindrical locks use standard ANSI prep — drops right into existing 161 cutouts without modification.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 2860-11G17-LB-10 |
| Function | Institution |
| Finish | Satin Bronze (US10/612) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Institution function for commercial access control
- Satin Bronze (US10/612) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.

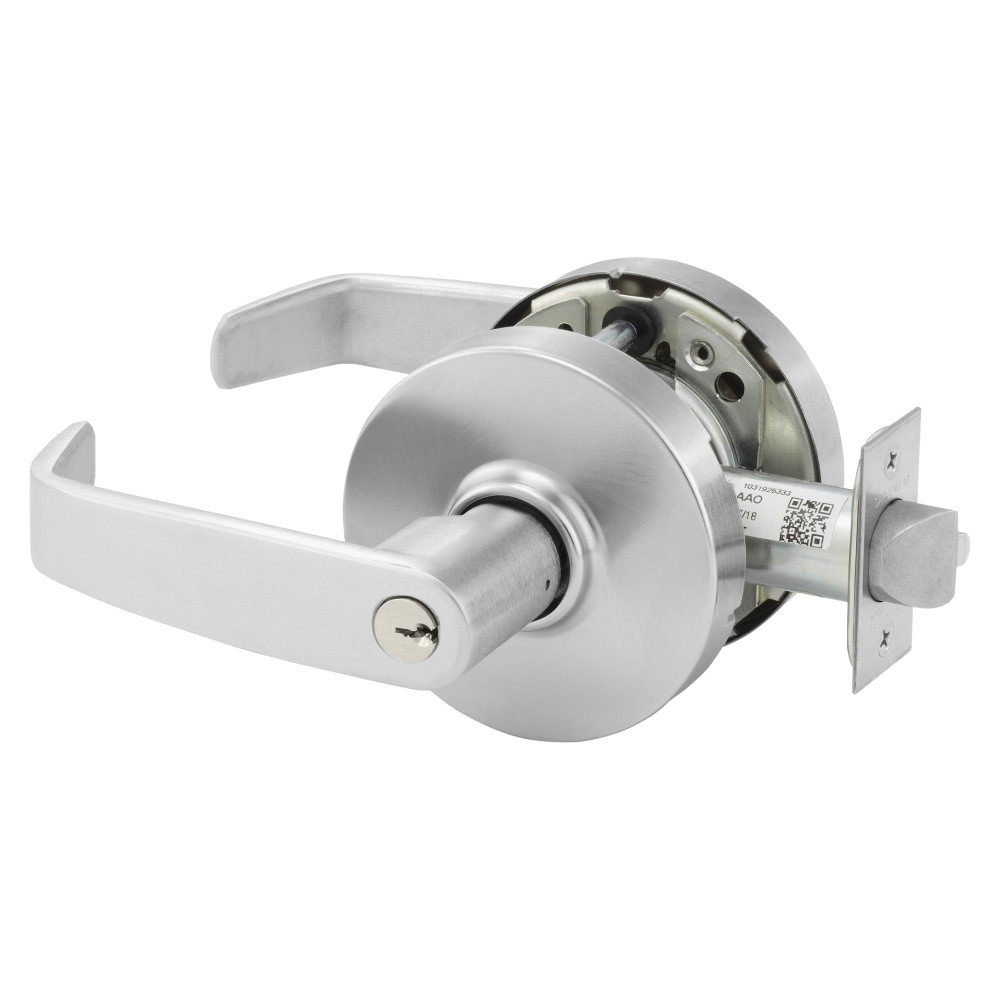

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
