Product Description
Grade 1 cylindrical lock — commercial-grade security in a standard bore install.

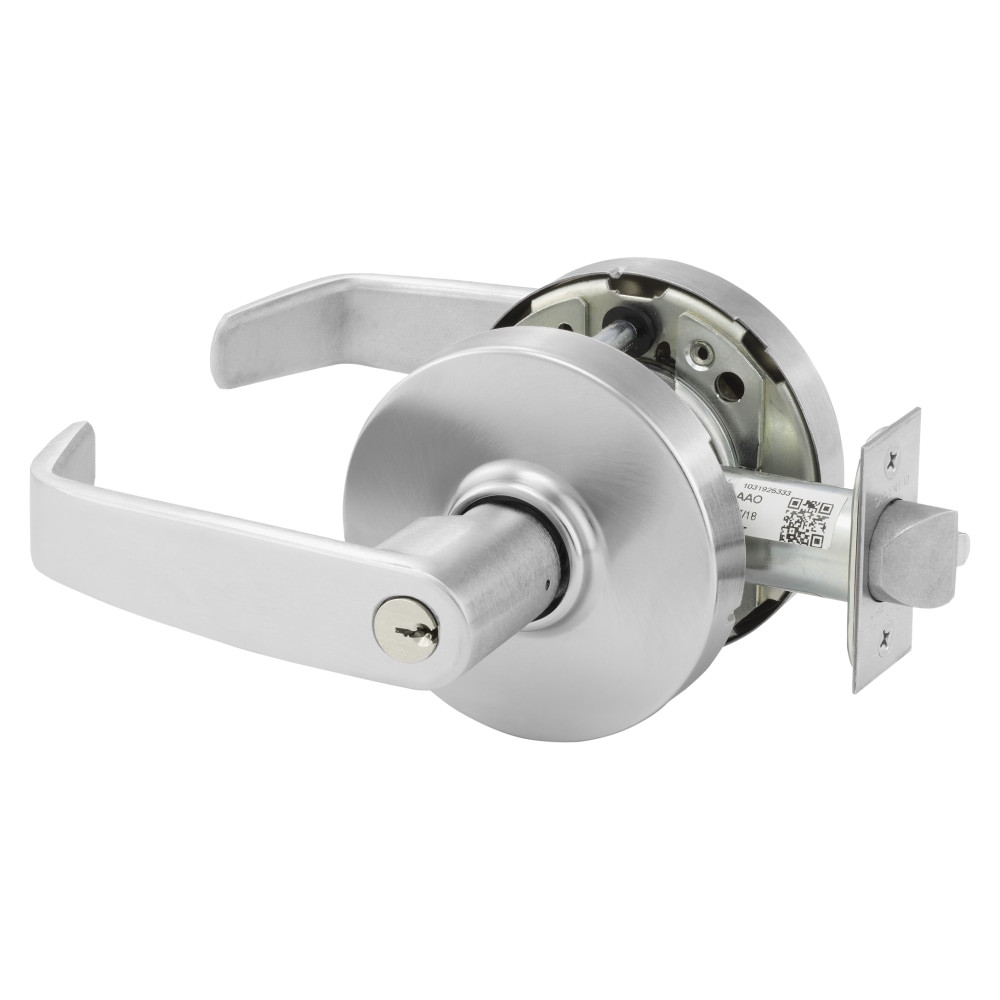

The Sargent 2870-11G24-LB-26D is a Grade 1 cylindrical lock from the 10 Line with Entry/Office function.
| SKU Breakdown: 2870-11G24-LB-26D | |
| 2870 | Backset/chassis configuration |
| 11G24 | Series and Entry/Office function |
| LB | Lever/rose design: LB |
| 26D | Finish: Satin Chrome |
This unit comes with L Rose, B Lever in Satin Chrome — the 26D finish you see on 90% of commercial jobs because it hides fingerprints, resists wear, and matches every other piece of hardware in the building. When in doubt, 26D is the safe bet. Cylindrical locks install in a standard 2-1/8" bore hole — no mortise pocket required. Fastest commercial lock to install.
| Certification | ANSI A156.2, BHMA Grade 1 |
| Backset | 2-3/4" |
| Warranty | 7-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating for cylindrical locks
- Standard 2-1/8" bore — fast install, no mortise pocket needed
- Through-bolt mounting for maximum resistance to lever torque attacks
- Satin Chrome (US26D/626) — matches existing hardware throughout the building
- Field reversible — works on any swing direction
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every lock ships brand new in factory-sealed packaging with the full manufacturer warranty. We've been selling and installing Sargent hardware for over 20 years — if you need help specifying the right lock for your opening, call us at (877) 365-5625. We speak locksmith.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
