Product Description

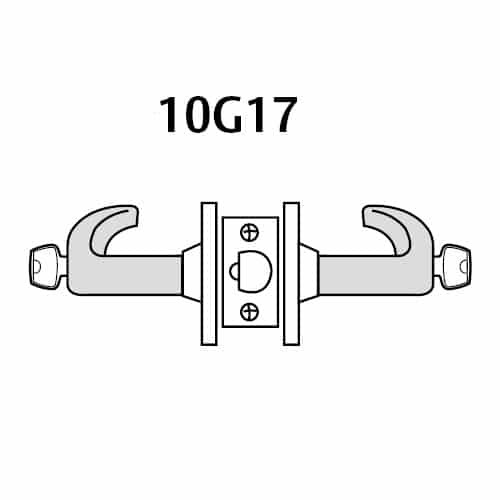

The Sargent 28LC-10G17-LP-26D is a 10 line cylindrical lock with Institution function in Satin Chrome (US26D/626). Both levers locked and unlocked by key only. No thumbturn or push-button. Grade 1 certified for heavy commercial use.
Prepped for interchangeable core (IC). Order IC housing and core separately.
| SKU Breakdown: 28LC-10G17-LP-26D | |
| 28LC | Backset/chassis configuration |
| 10G17 | Series and Institution function |
| LP | Trim: P Lever |
| 26D | Finish: Satin Chrome |
Pro-Tip from Our Locksmiths: Sargent cylindrical locks are a solid mid-range choice for commercial jobs where mortise prep isn't in the budget. Grade 1 certified with a clean, professional look.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 28LC-10G17-LP-26D |
| Series | Sargent 10 line |
| Function | Institution |
| Trim / Lever | P Lever |
| Finish | Satin Chrome (US26D/626) |
| Mount Type | Cylindrical |
| Cylinder | Interchangeable Core |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Institution function for commercial access control
- Satin Chrome (US26D/626) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Dealer — Lock Depot ships all Sargent products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
