Product Description

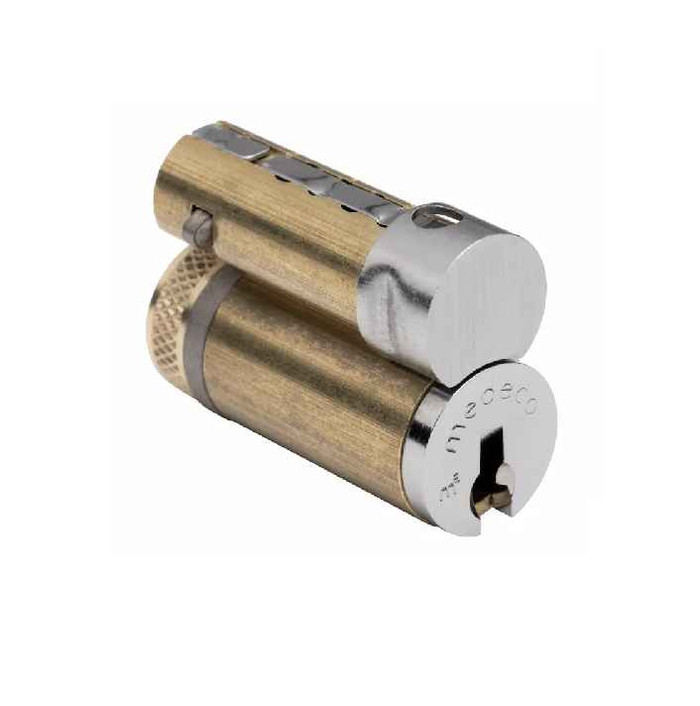

Need to rekey or expand a Medeco LFIC system without changing your locks? This Medeco 6-pin Large Format Interchangeable Core in the Medeco 00 keyway drops right into any Medeco LFIC-compatible lockset, lever, or deadbolt. Pull the existing core with a control key, slide this one in, and you're done — no disassembly, no removing the lock from the door.
⚠ Sub-Assembled — No Keys Included — Ships with pins included but not set. Your locksmith will combinate this core to your master key system. No operating keys or control key included.
🛠 Pro-Tip from Our Locksmiths: Medeco Biaxial is the original high-security platform — the one that put Medeco on the map. Uses the classic rotating pin technology with the 00 keyway. If you're maintaining an existing Biaxial system, these cores are direct replacements. Upgrading to Medeco3 later? Same housing, different core.
| Brand | Medeco |
| Part Number | 320201-05-00S |
| Series | 320201 |
| Core Type | LFIC (Large Format Interchangeable Core) |
| Pins | 6-Pin |
| Keyway | Medeco 00 |
| Keying | Sub-Assembled (Pins Included, Not Set) |
| Finish | Bright Brass (605) |
| Cylinder Format | Figure-8 (Large Format) |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 2 Year Limited Warranty |
- Large Format Interchangeable Core — swap cores in seconds with a control key, no lock disassembly required
- Ships sub-assembled with pins included — ready for combinating to your master key system
- Medeco 00 keyway — verify this matches your existing system before ordering
- Compatible with all Medeco LFIC-format locksets, levers, and deadbolts
- In stock at Lock Depot — same-day shipping on orders placed before 3 PM EST
Works With: Medeco LFIC cores are available in Schlage, Corbin Russwin, Sargent, and Yale housing formats — verify your format before ordering. Need a standard-security alternative? Shop Corbin Russwin LFIC Cores · Sargent LFIC Cores · Yale LFIC Cores.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
Warranty Information
Medeco (ASSA ABLOY) warrants lock cylinders to be free of defects in materials and workmanship for 2 years from the date of original purchase. Medeco mechanical keys are warranted against defects and breakage for the life of the product. Finishes are warranted for 2 years. Warranty is void if non-genuine Medeco keys are used. For warranty claims, contact Medeco at 1-800-839-3157.Product Videos
Custom Field
Product Type Removable Core
Cylinder LFIC Core
Series 320201
Finish Bright Brass
Function Sub-Assembled
Trim 00
