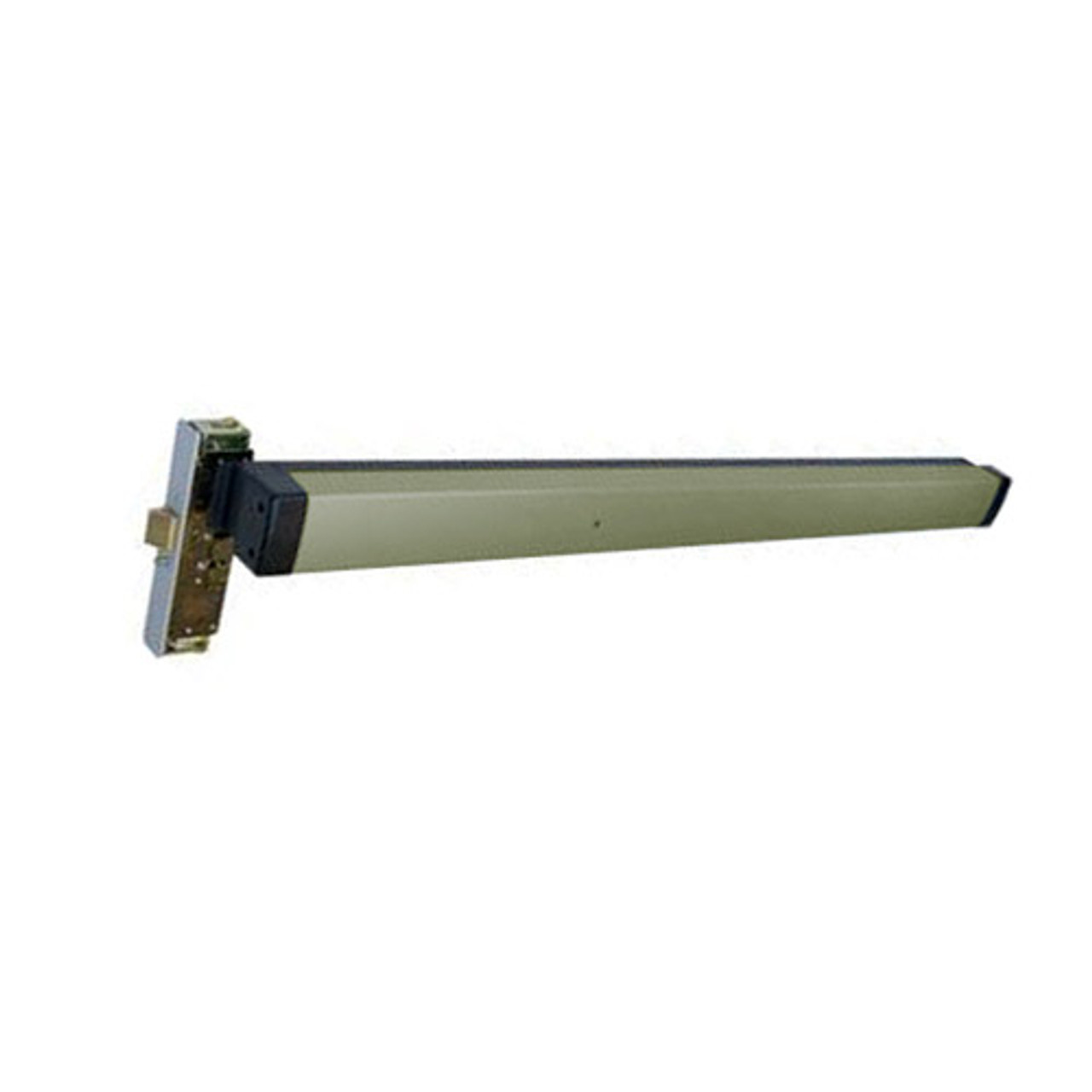

3320-M-71-36-628 Adams Rite Fire-Rated Mortise Exit Device with Single Monitoring Switch for Steel/Wood Doors in Clear

Product Description

3320-M-71-36-628 Adams Rite Fire-Rated Single Point Mortise Exit Device in Clear Anodized Finish

The 3320-M-71-36-628 series Exit Device has heavy duty deadlatching mechanism with strong and durable construction for a high level of security. It is clean with unobtrusive design and is very easy to install.

Benefits and Features:

• Clear Anodized Pushbar finish
• Faceplate finish: Dark Bronze Anodized
• Pushbar length: 36 inches
• Fire rating - 3 Hr
• Stile width: Minimum 5" stile
• Pushbar made of extruded aluminum, clad or Anodized material
• Door Thickness: Suits 1-3/4" standard which can be modified for thicker doors
• Projection: 2-5/8" when fully projected, 1-5/8" when dogged
• Handed operation - Right hand reverse door
• Strike made of stainless steel is available
• Heavy duty deadlatching mechanism
• Strong and durable construction for a high level of security
• Easy to install with clean and unobtrusive design
• UL listed hardware
• California State Fire Marshall certified
• Door construction : Hollow metal or wood
• Max Size Single Doors : 4'0" x 8'0"
• Max Size Pairs and Double Egress : 8'0" x 8'0"
• Flat shaped faceplate
• Standard self-tapping screws fastener
• Single switch monitoring feature
• 5 year limited manufacturer's warranty is included
