Product Description
3527A-L-US26-2-RHR Von Duprin 3527A Series with 360L Lever Right Handed Surface Vertical Rod Exit Device in Bright Chrome
The Von Duprin 3527A-L-US26-2-RHR is a touch bar surface vertical rod exit device from the 35A Series family. Lever Trim — outside lever retracts the latch for entry. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 3527A uses surface-mounted vertical rods for top-and-bottom latching. Standard choice for pairs of doors where both leaves need to be active. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The 3327A/3527A surface vertical rod models latch at the header and threshold for pairs of doors. The rods are surface-mounted and visible on the door face. For a cleaner look on glass doors, go with the 3347A/3547A concealed vertical rod.
| Specifications | |
|---|---|
| Part Number | 3527A-L-US26-2-RHR |
| Function | L - Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Surface Vertical Rod (vertical rods visible on door surface, top and bottom bolts) |
| Handing | Right Hand Reverse (RHR) |
| Door Material | Aluminum, Glass, Hollow Metal, Wood |
| Outside Trim | Included |
| Warranty | 10-Year Mechanical |
- 35A Series touch bar design — smooth, quiet operation
- Surface vertical rod latching — secures at header and threshold
- Hex key dogging standard — holds latch retracted during business hours
- Non-handed, field-reversible — one device fits both LHR and RHR
- Bright Chrome (US26/625) finish
- 10-year mechanical warranty — longest in the Von Duprin line
Works With: For narrow stile doors, see the 33A Series. For the top-of-line pushpad, see the 98/99 Series. Same trim accessories work across the 33A/35A family.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

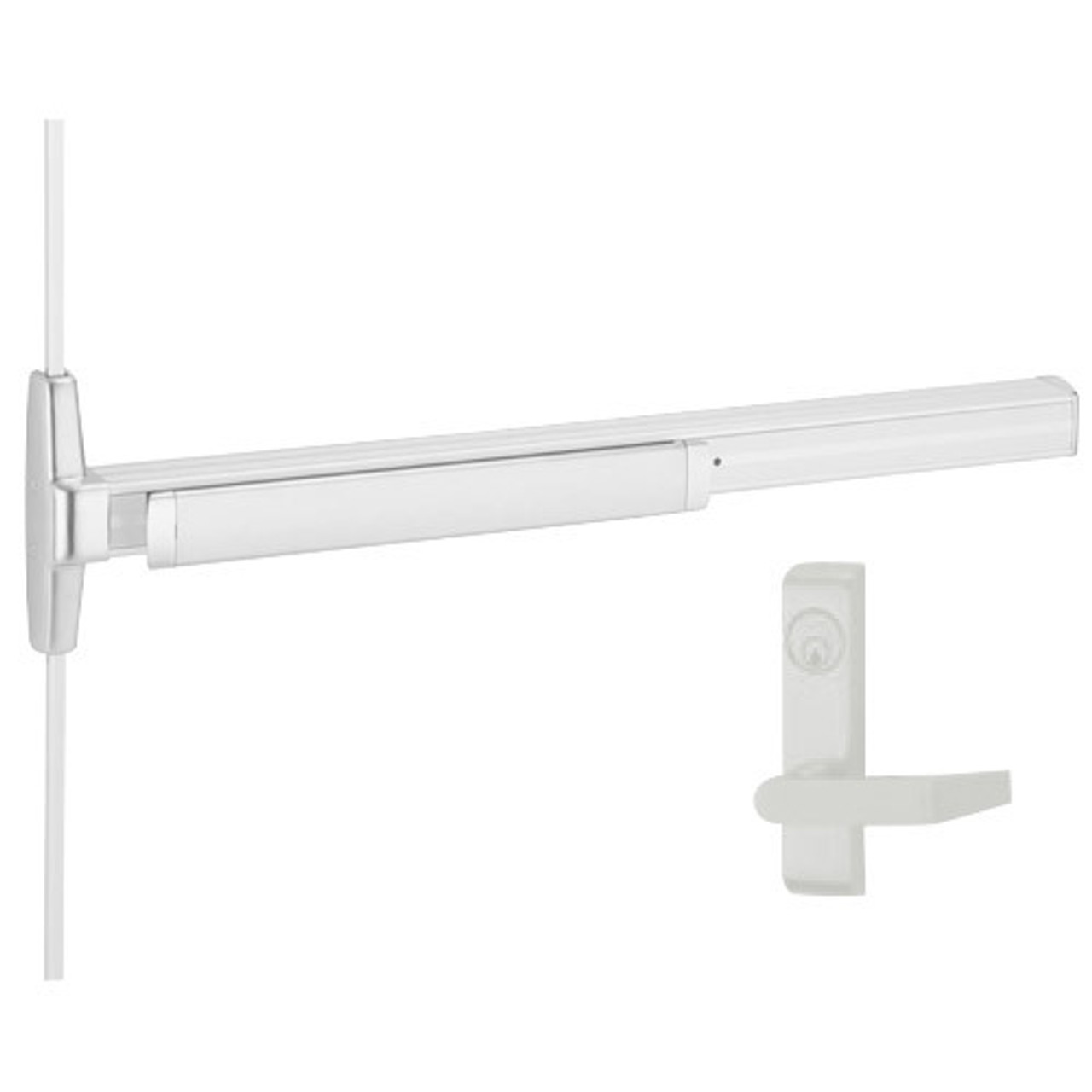

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
