Product Description
3548A-L-US26D-3-LHR Von Duprin with 360L Lever Left Handed Concealed Vertical Rod Exit Device for Hollow Metal Doors in Satin Chrome
The Von Duprin 3548A-L-US26D-3-LHR is a touch bar rim exit device from the 35A Series family. Lever Trim — outside lever retracts the latch for entry. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 35A Series touch bar provides smooth, quiet operation with a clean look. The touch bar is non-handed and field-reversible — one SKU covers both LHR and RHR door swings. Available in 3-foot width. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The 35A-NL is the most common 35A function on commercial buildings — Night Latch gives you key-controlled entry from outside while the touch bar always allows free egress from inside. Ships less cylinder.
| Specifications | |
|---|---|
| Part Number | 3548A-L-US26D-3-LHR |
| Function | L - Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Handing | Left Hand Reverse (LHR) |
| Door Width | 3-Foot (36") |
| Door Material | Aluminum, Glass, Hollow Metal, Wood |
| Outside Trim | Included |
| Warranty | 10-Year Mechanical |
- 35A Series touch bar design — smooth, quiet operation
- Hex key dogging standard — holds latch retracted during business hours
- Non-handed, field-reversible — one device fits both LHR and RHR
- Satin Chrome (US26D/626) finish
- 10-year mechanical warranty — longest in the Von Duprin line
Works With: For narrow stile doors, see the 33A Series. For the top-of-line pushpad, see the 98/99 Series. Same trim accessories work across the 33A/35A family.
Authorized Von Duprin Dealer — Lock Depot ships all Von Duprin products brand new in factory-sealed packaging with the complete manufacturer warranty. Same day shipping available on most orders. Questions? Contact us for free expert support.

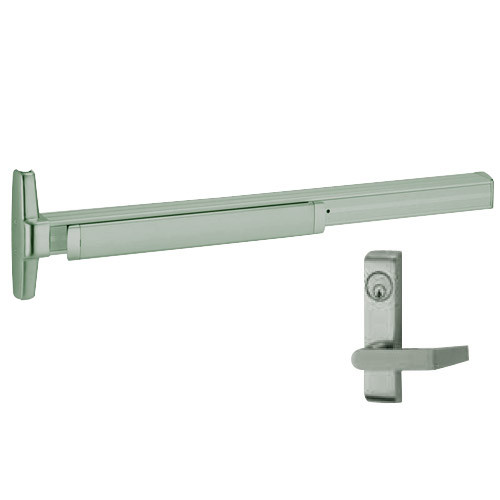

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
