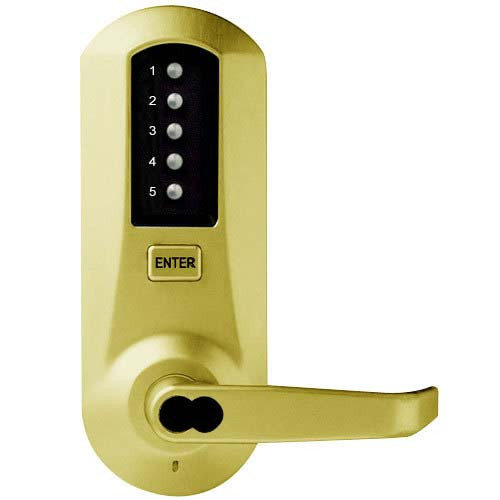

5010MWL-03-41 Simplex Pushbutton Lever Exit Trim with Medeco Core Override in Bright Brass

Product Description

Exit trim only. This Simplex 5010 is the outside trim for a rim exit device, and the exit device is sold separately. dormakaba lists Von Duprin 98/99 and 22, Sargent 8800 and 8888, Corbin Russwin ED5200, Precision 21, Detex 10, Yale 7100 and 2100 and dormakaba 9300 among the compatible rim devices. It does not fit mortise or vertical rod exit devices.

The 5010MWL-03-41 from Dormakaba's Simplex line is a workhorse mechanical pushbutton exit trim trusted in government facilities, hospitals, and commercial buildings worldwide.

Key Features

• All-mechanical operation - no batteries to replace, no wiring required
• Single access combination with thousands of possible codes
• Combination changed at the keypad without removing lock from door
• Prepped for Medeco LFIC key override - core sold separately
• ADA-compliant lever design
• Vandal-resistant solid metal pushbuttons
• Weather-resistant for indoor/outdoor installation
• 3-hour UL/ULC fire rated

Technical Specifications

• Model: 5010MWL-03-41
• Series: Simplex 5000 Series
• Function: Exit Trim - Combination Entry
• Finish: Bright Brass (US3/605)
• Grade: ANSI/BHMA Grade 1
• Backset: N/A (exit trim)
• Latch Throw: N/A
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Handing: Non-handed (field reversible)
• Fire Rating: 3-hour UL/ULC
• Warranty: 3 Year
• Key Override: Medeco LFIC (core not included)

Installation Notes

• Mounts on a compatible rim exit device (sold separately) - not for mortise or vertical rod devices
• No electrical or low-voltage work required
• Template and mounting hardware included
• Ships LH - easily field reversed for RH doors
