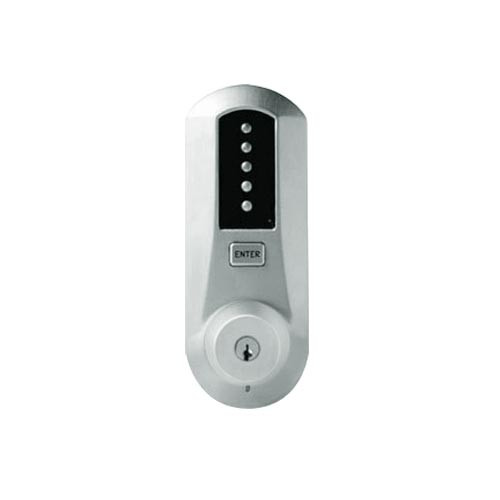

5021XKWK-026-41 Simplex Pushbutton Knob Lock with Kaba key Override in Bright Chrome

Product Description

The Dormakaba Simplex 5021XKWK-026-41 is a mechanical pushbutton lock providing combination-based access control without batteries or wiring. Built for commercial applications where reliability matters.

Key Features

• All-mechanical operation - no batteries to replace, no wiring required
• Single access combination with thousands of possible codes
• Combination changed at the keypad without removing lock from door
• Kaba 90 keyway cylinder included for key override
• ADA-compliant lever design
• Vandal-resistant solid metal pushbuttons
• Weather-resistant for indoor/outdoor installation
• 3-hour UL/ULC fire rated

Technical Specifications

• Model: 5021XKWK-026-41
• Series: Simplex 5000 Series
• Function: Combination Entry with Key Override
• Finish: Bright Chrome (US26/625)
• Grade: ANSI/BHMA Grade 1

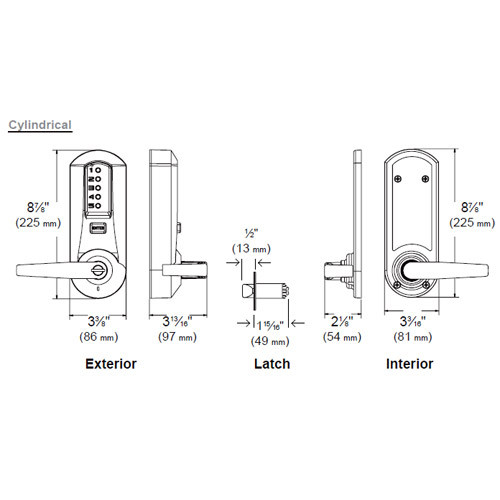

• Backset: 2-3/4 in. (70mm)
• Latch Throw: 1/2 in. (13mm)
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Handing: Non-handed (field reversible)
• Fire Rating: 3-hour UL/ULC
• Warranty: 3 Year
• Key Override: Kaba 90 keyway (included)

Installation Notes

• Standard cylindrical prep - 2-1/8 in. cross bore, 1 in. edge bore
• No electrical or low-voltage work required
• Template and mounting hardware included
• Ships LH - easily field reversed for RH doors

The Simplex 5000 Series has been the industry standard for mechanical pushbutton access control for over 50 years. Lock Depot stocks the full Simplex line with competitive pricing and fast shipping.
