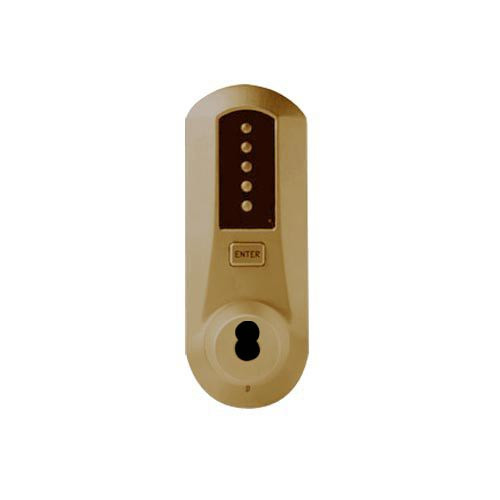

5042SWK-744-41 Simplex Pushbutton Knob Lock with Schlage Core Override in Oil-rubbed Bronze

Product Description

The 5042SWK-744-41 from Dormakaba's Simplex line is a workhorse mechanical pushbutton lock trusted in government facilities, hospitals, and commercial buildings worldwide.

Key Features

• All-mechanical operation - no batteries to replace, no wiring required
• Single access combination with thousands of possible codes
• Combination changed at the keypad without removing lock from door
• Prepped for Schlage LFIC key override - core sold separately
• Passage mode with interior thumbturn - allows free entry without code when engaged
• ADA-compliant lever design
• Vandal-resistant solid metal pushbuttons
• Weather-resistant for indoor/outdoor installation
• 3-hour UL/ULC fire rated

Technical Specifications

• Model: 5042SWK-744-41
• Series: Simplex 5000 Series
• Function: Combination Entry with Key Override and Passage Mode
• Finish: Oil Rubbed Bronze (US10B/613)
• Grade: ANSI/BHMA Grade 1
• Backset: 2-3/8 in. (60mm)
• Latch Throw: 1/2 in. (13mm)
• Door Thickness: 1-3/8 in. to 2-1/4 in.
• Handing: Non-handed (field reversible)
• Fire Rating: 3-hour UL/ULC
• Warranty: 3 Year
• Key Override: Schlage LFIC (core not included)

Installation Notes

• Standard cylindrical prep - 2-1/8 in. cross bore, 1 in. edge bore
• No electrical or low-voltage work required
• Template and mounting hardware included
• Ships LH - easily field reversed for RH doors

Dormakaba Simplex mechanical locks are specified by architects and security professionals for dependable access control. Lock Depot offers expert support on all Simplex products.
