Product Description
Surface vertical rod devices secure at the head and threshold with rods visible on the door face. The standard configuration for double doors without a center mullion — each leaf latches independently into the header and floor.
The Sargent 55-8728F-RHR-10 is a Grade 1 surface vertical rod exit device from the 80 Series for 36" openings with Passage function.
| SKU Breakdown: 55-8728F-RHR-10 | |
| 55 | Door width (inches) |
| 8728F | Device model: 8728F |
| RHR | Right Hand Reverse |
| 10 | Finish: Satin Bronze |
This device is Right Hand Reverse. Exit devices are HANDED and cannot be reversed in the field. Stand outside the door facing it: hinges on the left = Left Hand, hinges on the right = Right Hand. If the door swings toward you, add "Reverse." Verify your handing before ordering.
Pro-Tip from Our Locksmiths: When specifying exit devices for double doors without a mullion, each leaf gets its own device. The active leaf (with the lock) gets the full device with trim. The inactive leaf gets a dummy push bar or flush bolt setup depending on the spec.
| Handing | Right Hand Reverse |
| Certification | ANSI A156.3, BHMA Grade 1, UL 10C |
| Warranty | 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial exit device rating
- Satin Bronze finish
Related Products:
- Browse all Sargent Exit Devices — Rim, surface vertical rod, and concealed vertical rod
Ships Same Day — Order before 2PM EST and your Sargent hardware ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Questions? Call (877) 365-5625 or contact us online.

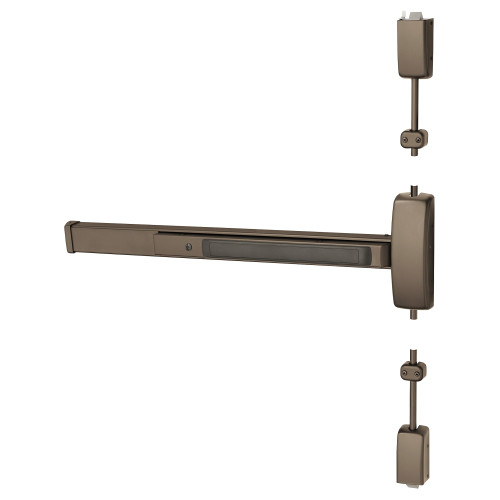

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 5-year limited warranty on exit devices covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Exit Device - Surface Vertical Rod
Function Passage
Series 80
Finish Satin Bronze
Mount Type Surface Vertical Rod
