Product Description
Concealed vertical rod devices hide the rods inside the door for a cleaner appearance. The trade-off for better aesthetics? The door must be prepped for internal rod routing, and field service requires removing the push bar.

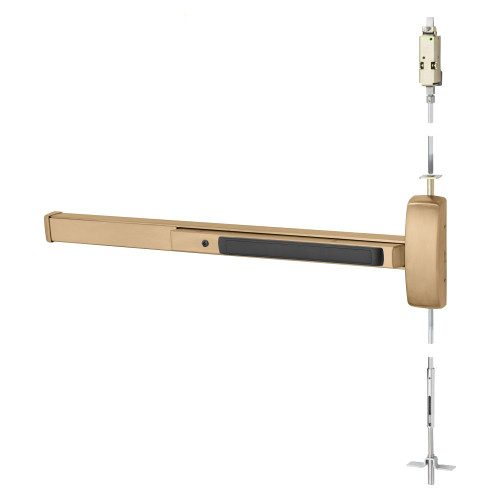

The Sargent 55-MD8640F-LHR-10 is a Grade 1 concealed vertical rod exit device from the 80 Series for 36" openings with Single Dummy function.
| SKU Breakdown: 55-MD8640F-LHR-10 | |
| 55 | Door width (inches) |
| MD8640F | Device model: MD8640F |
| LHR | Left Hand Reverse |
| 10 | Finish: Satin Bronze |
This device is Left Hand Reverse. Exit devices are HANDED and cannot be reversed in the field. Stand outside the door facing it: hinges on the left = Left Hand, hinges on the right = Right Hand. If the door swings toward you, add "Reverse." Verify your handing before ordering.
Pro-Tip from Our Locksmiths: Exit devices are HANDED — and getting the handing wrong on a $2,000+ device is an expensive mistake. Stand OUTSIDE the door and face it: if the hinges are on the LEFT, it's Left Hand (LH). If the hinges are on the RIGHT, it's Right Hand (RH). For doors that swing toward you, add 'Reverse' — LHR or RHR.
| Handing | Left Hand Reverse |
| Certification | ANSI A156.3, BHMA Grade 1, UL 10C |
| Warranty | 5-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial exit device rating
- Satin Bronze finish
Related Products:
- Browse all Sargent Exit Devices — Rim, surface vertical rod, and concealed vertical rod
Ships Same Day — Order before 2PM EST and your Sargent hardware ships the same business day. Lock Depot is an authorized Sargent distributor — every product includes the full manufacturer warranty. Questions? Call (877) 365-5625 or contact us online.
Image shown is representative of this product line. Actual product matches your selected finish and configuration.
Warranty Information
Sargent provides a 5-year limited warranty on exit devices covering defects in materials and workmanship under normal use and service. Warranty applies to the original purchaser when installed per Sargent specifications.Product Videos
Custom Field
Product Type Exit Device - Concealed Vertical Rod
Function Single Dummy
Series 80
Finish Satin Bronze
Mount Type Concealed Vertical Rod
