Product Description
555NL-CA US10B - Von Duprin Grade 1 Pull Trim, Nightlatch Cylinder Assembly Function, Dark Oxidized Satin Bronze Oil Rubbed Finish, Non-Handed
| Part Number Breakdown: 555NL-CA US10B | |
|---|---|
| 55 | 55 Series Exit Device |
| US10B | Oil Rubbed Bronze (BHMA 613) |
The 555NL-CA US10B is a Von Duprin 55 Series Rim exit device in Oil Rubbed Bronze. Exit Only — push bar releases latch from inside, no outside trim. Dogging holds latch retracted during business hours.
ANSI/BHMA A156.3 Grade 1 certified. Hex key dogging standard. Field reversible handing.
Pro-Tip from Our Locksmiths: The Von Duprin 55 Series is Grade 1 panic hardware — the highest commercial grade. Designed for heavy-traffic commercial doors with cycle counts well into the millions.
| Specifications | |
|---|---|
| Part Number | 555NL-CA US10B |
| Brand | Von Duprin (Allegion) |
| Series | Von Duprin 55 Series |
| Function | Exit Only |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Mount Type | Rim (horizontal latch bolt — strikes into frame on lock side) |
| Finish | Oil Rubbed Bronze (US10B/613) |
| Cylinder | No Cylinder |
| Fire Rating | Non Fire Rated |
- Von Duprin 55 Series Rim exit device — Grade 1 architectural-grade panic hardware
- Rim (horizontal latch bolt — strikes into frame on lock side)
- Oil Rubbed Bronze finish
- Hex key dogging standard — hold latch retracted during business hours
Authorized Von Duprin Distributor — Lock Depot is an authorized Von Duprin dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

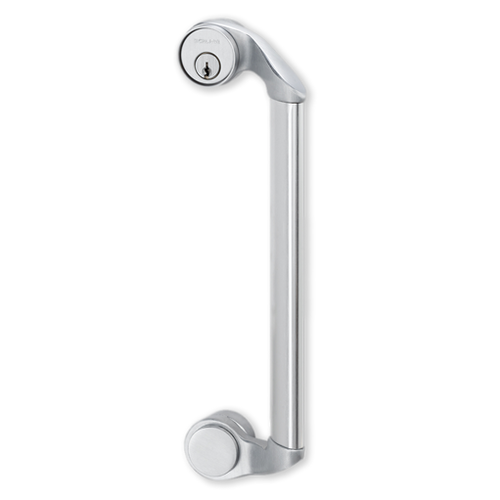

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
