Product Description

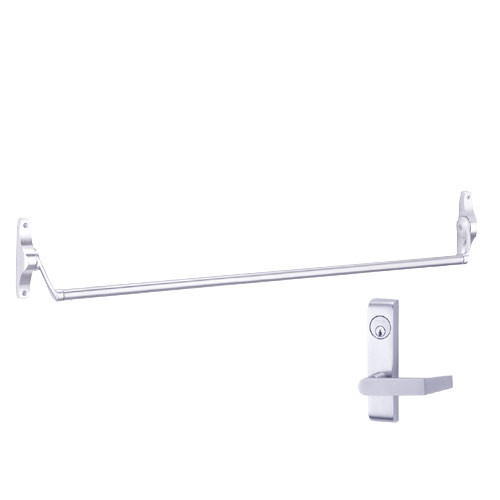

55L-US26-LHR Von Duprin 55 Series with Left Handed 379L Lever - Rim Exit Device in Bright Chrome
The Von Duprin 55L-US26-LHR is a narrow stile rim exit device built for aluminum storefront and glass doors where standard-width exit devices won't fit. Lever Trim — outside lever retracts the latch for entry. Lever operation controlled by cylinder on keyed functions. Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
The 55 Series crossbar design provides a wide "strike zone" for egress on doors with stiles as narrow as 1-3/4". Unlike modern pushpad devices, the crossbar spans nearly the full width of the door — giving occupants maximum activation area in an emergency. This is a handed device — verify LHR or RHR before ordering. UL listed for panic exit hardware with hex key dogging standard. ANSI/BHMA A156.3 Grade 1 certified.
Pro-Tip from Our Locksmiths: The most common callback on the 55 is a sagging crossbar caused by loose wedge screws in the lever arm. When installing, use medium-strength thread locker on those set screws. It'll save you a trip back.
| Specifications | |
|---|---|
| Part Number | 55L-US26-LHR |
| Function | L - Lever |
| Grade | ANSI/BHMA A156.3 Grade 1 |
| Handing | Left Hand Reverse (LHR) |
| Minimum Stile Width | 1-3/4" (44mm) |
| Door Material | Aluminum, Glass, Hollow Metal |
| Outside Trim | Included |
| Warranty | 5-Year Mechanical |
- Narrow stile crossbar design — fits door stiles as narrow as 1-3/4"
- Hex key dogging standard — holds latch retracted during business hours
- Handed device — factory-set for LHR or RHR
- Bright Chrome (US26/625) finish
Works With: Add outside trim separately: 550DT Dummy Pull, 555NL Night Latch Pull, or 379L Lever Trim. The 55 Series uses dedicated narrow stile trim — standard 99 or 33A trim will NOT fit. For pairs of doors, see the 5547 Concealed Vertical Rod.
Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
