Product Description

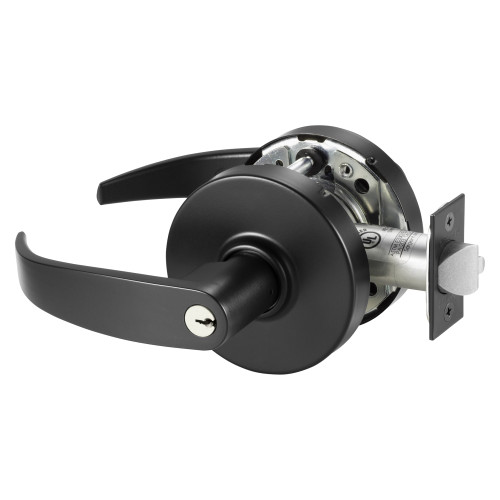

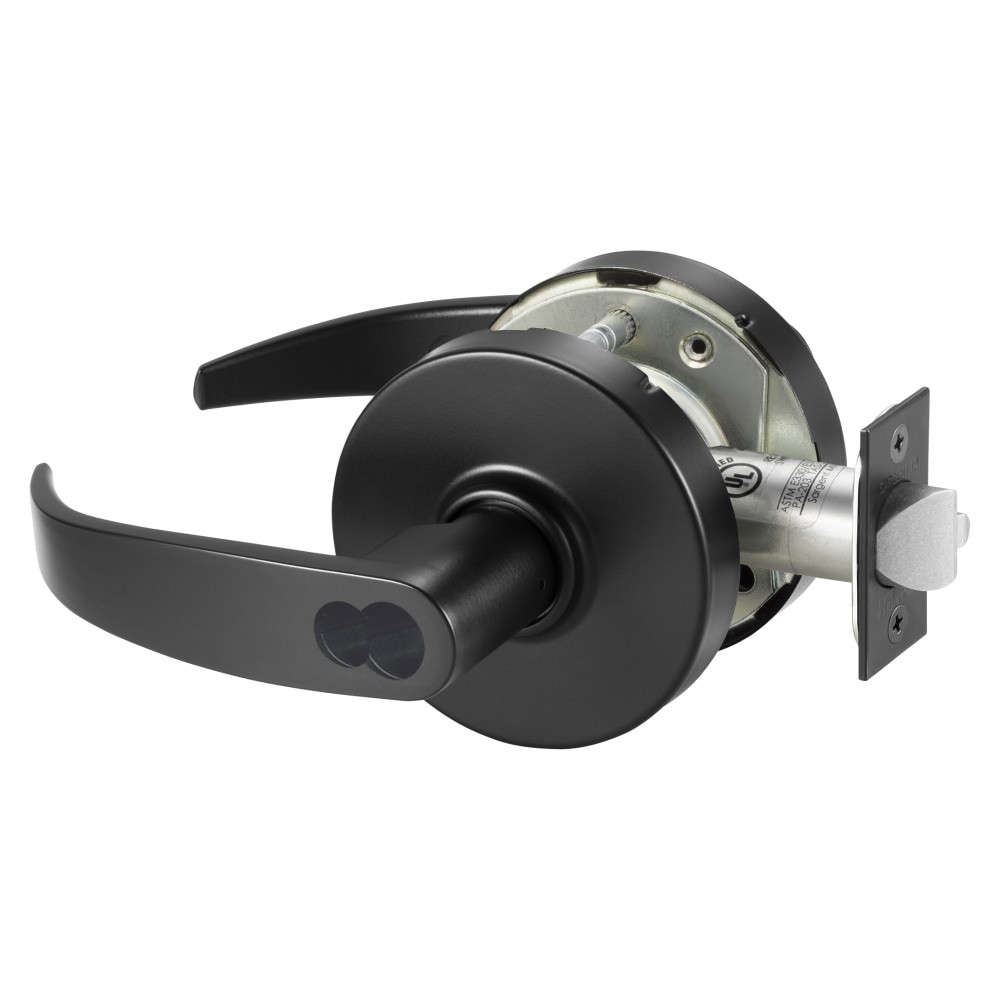

The Sargent 60-10XG04-LP-BSP is a 10 Line cylindrical lock with Storeroom function in Black Suede (BSP). Outside lever is always locked — key required for every entry. Inside lever is always free for exit. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 60-10XG04-LP-BSP | |
| 60 | Backset/chassis configuration |
| 10XG04 | Series and Storeroom function |
| LP | Lever/rose design: LP |
| BSP | Finish: Black Suede |
Pro-Tip from Our Locksmiths: Sargent cylindrical locks are a solid mid-range choice for commercial jobs where mortise prep isn't in the budget. Grade 1 certified with a clean, professional look.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60-10XG04-LP-BSP |
| Function | Storeroom |
| Finish | Black Suede (BSP) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Storeroom function for commercial access control
- Black Suede (BSP) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

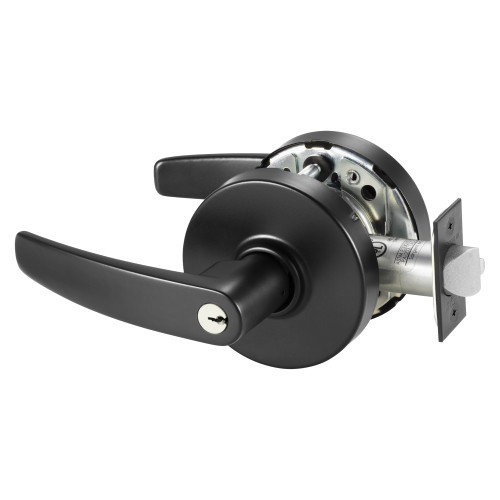

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
