Product Description
The Sargent 60-10XG05-LL-BSP is a 10 Line cylindrical lock with Entry/Office function in Black Suede (BSP). Key locks and unlocks the outside lever. Inside lever is always free for exit. Convenient push-button locking from inside. Grade 1 certified for heavy commercial use.
Ships less cylinder — order a mortise cylinder separately to match your existing keyway.
| SKU Breakdown: 60-10XG05-LL-BSP | |
| 60 | Backset/chassis configuration |
| 10XG05 | Series and Entry/Office function |
| LL | Lever/rose design: LL |
| BSP | Finish: Black Suede |
Pro-Tip from Our Locksmiths: The 10 Line is Sargent's workhorse cylindrical lock. If you need something that handles heavy traffic without mortise lock pricing, this is your spec.
| Brand | Sargent (ASSA ABLOY) |
| Part Number | 60-10XG05-LL-BSP |
| Function | Entry/Office |
| Finish | Black Suede (BSP) |
| Mount Type | Cylindrical |
| Cylinder | Standard Cylinder |
| Grade | ANSI/BHMA Grade 1 |
| Warranty | 7-Year Limited |
- ANSI/BHMA Grade 1 cylindrical lock — heavy commercial duty
- Entry/Office function for commercial access control
- Black Suede (BSP) finish
- Standard ANSI/161 prep — drops into existing cutouts
Works With: Standard ANSI prep doors. Compatible with Sargent conventional cylinders. If you're replacing Schlage or Arrow cylindrical locks, verify your door prep — Sargent uses standard 161 cutout.
Authorized Sargent Distributor — Lock Depot is an authorized Sargent dealer. Every product ships brand new in original manufacturer packaging with full factory warranty. Contact us or call (877) 365-5625 for expert assistance.

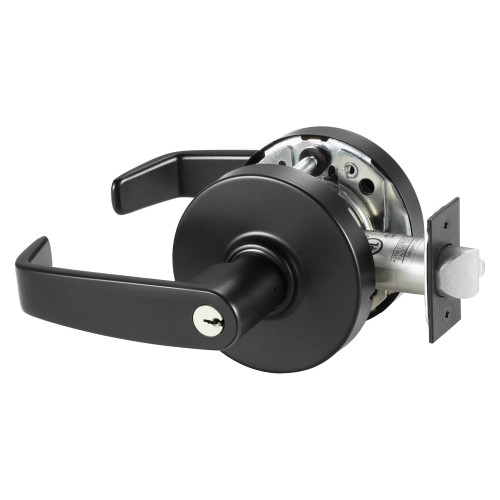

Image shown is representative of the product line. Actual finish, trim, and configuration may vary by SKU.
