Product Description
Designed for dorm rooms, residential care facilities, and assisted living — the occupant controls the lock from inside, but staff can always enter with a key from outside.
The Sargent 60-8225-LW1B-26D is a Dormitory function mortise lock from the 8200 Series — Sargent's flagship commercial mortise platform that's been trusted on schools, hospitals, office buildings, and government facilities for decades. Dormitory function — inside thumbturn controls the outside lever. Key override from outside for maintenance and emergencies.
| SKU Breakdown: 60-8225-LW1B-26D | |
| 60 | Electrified mortise lock (60 prefix) |
| 8225 | Series 8200, Dormitory function |
| LW1B | Trim code: LW1B |
| 26D | Finish: Satin Chrome |
This one comes with LW1 Escutcheon, B Lever in Satin Chrome — the 26D finish you see on 90% of commercial jobs because it hides fingerprints, resists wear, and matches every other piece of hardware in the building. When in doubt, 26D is the safe bet.
The B lever is Sargent's bread-and-butter commercial design — ADA compliant, returns to horizontal after use, non-handed so it works on any door. You'll find it on thousands of doors in every school district and hospital in the country.
| Certification | ANSI A156.13, BHMA Grade 1, UL 10C (3-Hour Fire Rating) |
| Backset | 2-3/4" |
| Face Size | 8" x 1-1/4" |
| Warranty | 10-Year Limited. Contact ASSA ABLOY at 1-800-727-5477. |
- ANSI/BHMA Grade 1 — highest commercial security rating, tested to 1.5 million cycles
- 3-hour fire rated — UL 10C listed for positive pressure fire test
- LW1 Escutcheon, B Lever — Sargent commercial trim
- Satin Chrome (US26D/626) — the industry standard commercial finish, hides fingerprints and matches existing hardware
- Field reversible — works on left or right hand doors without modification
Related Products:
- Browse all Sargent Mortise Locks — Every function, trim, and finish in the 8200 Series
Why Buy From Lock Depot? — We're locksmiths, not just an online store. Every order is reviewed by someone who knows the difference between Fail Safe and Fail Secure, who can tell you which trim fits your prep, and who'll pick up the phone at (877) 365-5625 if something doesn't look right. Authorized Sargent dealer. Full manufacturer warranty. Same day shipping.

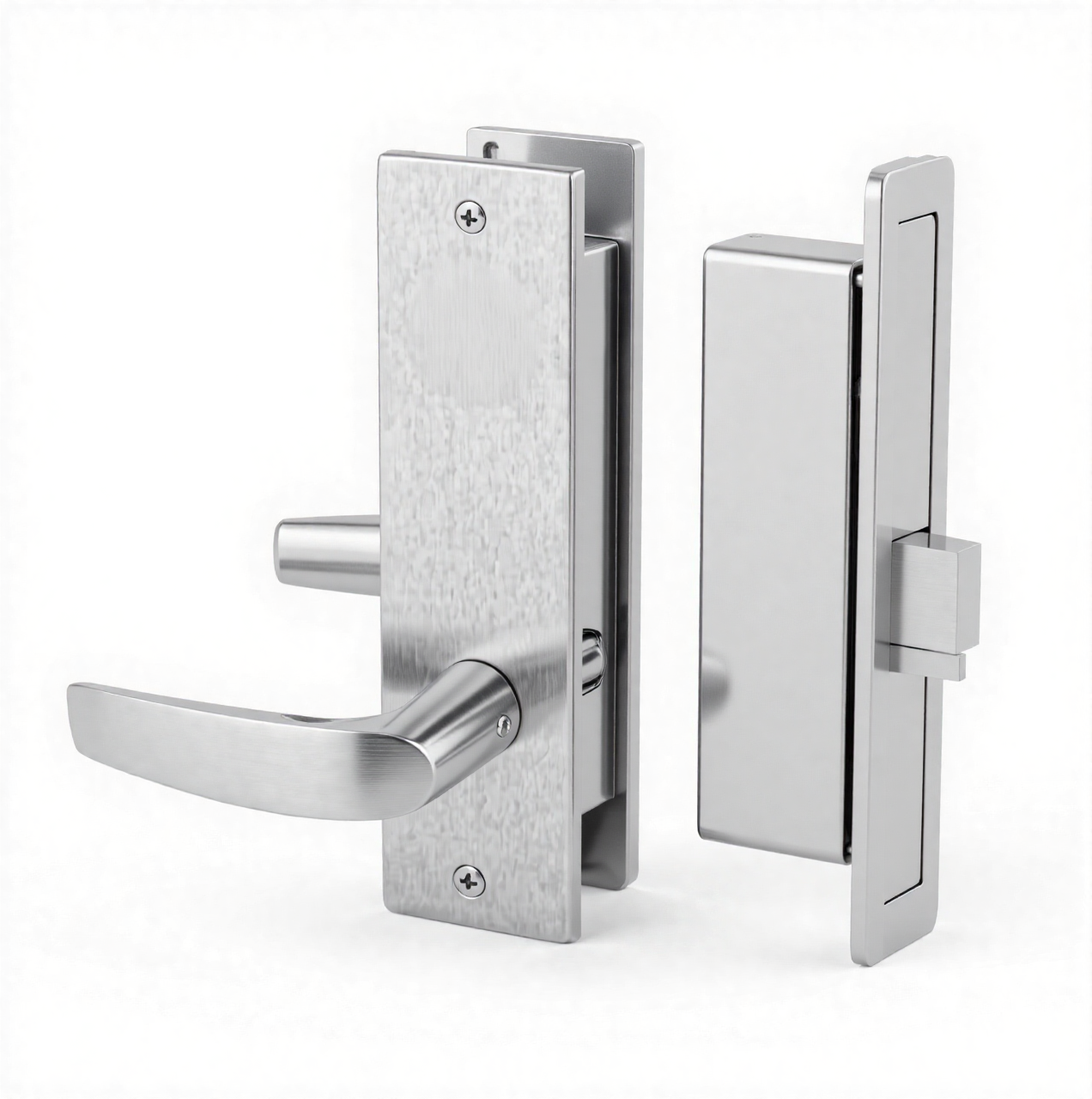

Image shown is representative of this product line. Actual product matches your selected finish and configuration.
